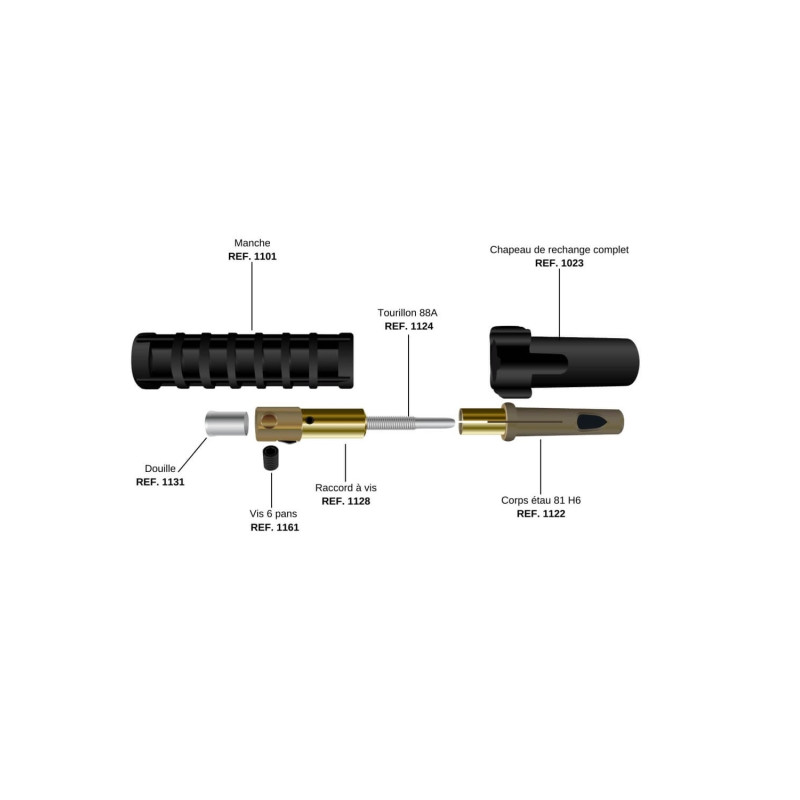

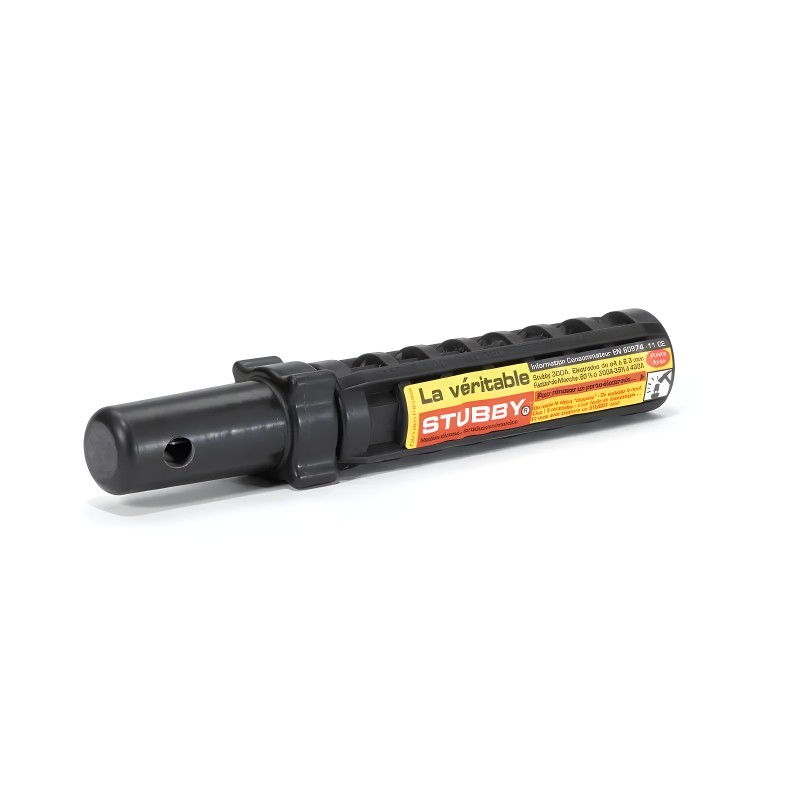

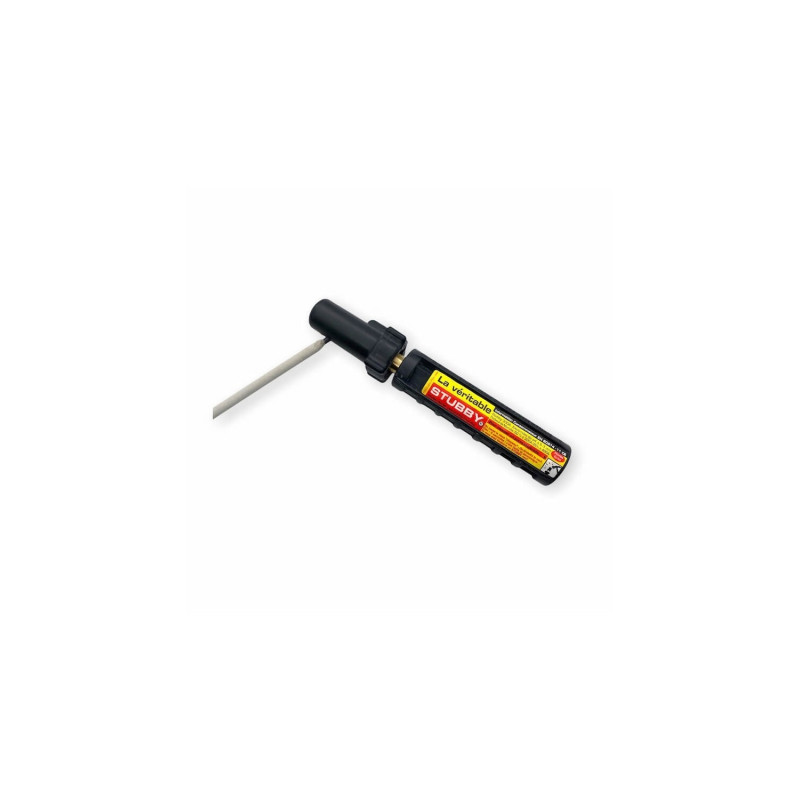

Screw-type electrode holder 400 Amperes - STUBBY®400
Duty cycle 300A @ 60% - 400 A@ 35%
Compatible with rutile, basic or cellulosic electrodes Ø 1.6 to 6.3 mm
Maximum cable cross-section: 50 mm²
Electrode locking by screw
Right-hand thread
Full insulation
Compliant with standard EN-60-974-11
31,67 € tax excl.
Screw-type electrode holder 400 Amperes - STUBBY®400
Duty cycle 300A @ 60% - 400 A@ 35%
Compatible with rutile, basic or cellulosic electrodes Ø 1.6 to 6.3 mm
Maximum cable cross-section: 50 mm²
Electrode locking by screw
Right-hand thread
Full insulation
Compliant with standard EN-60-974-11
€3.23
€5.33
Perfect material of very good quality
good product
professional quality
Pro
at the top..
does the job very well, just a support to make for the workbench to put it on
Very good electrode holder. The electrode is held very well and for welding in somewhat complicated conditions it makes a difference.
Electrode holder of very good quality, highly recommended and fast delivery.
Super quality, good grip, perfect. This model of electrode holder is used at Framatome for hand welding operations on steam generators and tanks...
Good quality and necessary to guide the aluminum wire
Expert advice for professionals and individuals
Benefit from the support of specialists, whatever your profile.
Secure payment
Your transactions are protected by the latest security technologies.
Express delivery in 24/48 h
Fast dispatch to France, Europe and overseas territories upon confirmation of your order.
Best price guaranteed
Enjoy the most competitive prices on the market all year round.
Supplier stock
Telwin
Reference: 802666
€255.23
207,50 € tax excl.
or 3 x 85,08 €
Free delivery
2-year warranty
This kit includes: 802666 / T04050 / T04058. It is compatible with the Superior 400 welding machine models from TELWIN.
In stock
SOUDO METAL
Reference: 130.00
€33.21
27,00 € tax excl.
Fast delivery
2-year warranty
Lever electrode holder 300 Amperes
Duty cycle 300 A@35% - 250 A@ 60%
Compatible with rutile, basic or cellulosic electrodes Ø 1.6 to 4 mm
Electrode locking by brass jaws
Head and handle in polyester resin reinforced with fiberglass
Maximum cable cross-section: 35 mm²
Cable fastening by hexagon socket screws
Compliant with standard EN-60-974-11
In stock
Sacit
Reference: URANIA
€33.46
27,20 € tax excl.
Fast delivery
2-year warranty
Lever electrode holder
Die-cast brass body
Insulating coating in non-flammable, heat-resistant thermosetting materials
Electrode clamping in 5 positions
URANIA 5 For cable cross-section 35 - 50 mm²
250 A @ 60% and 300 A @ 35% - For electrodes from 3.2 to 5 mm
URANIA 6 For cable cross-section 50-70 mm²
300 A @ 60% and 400 A @ 35% - For electrodes from 4 to 6.3 mm
In stock
Sacit
Reference: NEVADA
€13.16
10,70 € tax excl.
Fast delivery
2-year warranty
Electrogalvanised steel sheet earth clamp
Copper-plated brass contacts and copper braid
Cable clamped with copper strip
Copper-plated steel cable clamp
NEVADA 2 For cable cross-section 16 - 25 - 35 mm²
200 A @ 60% and 250 A @ 35%
NEVADA 3 For cable cross-section 50-70 mm²
300 A @ 60% and 400 A @ 35%
In stock
Soudexpert
Reference: PM-200A
€8.15
6,63 € tax excl.
Fast delivery
2-year warranty
200A earth clamp for 16 and 25mm² cable cross-section
Steel sheet earth clamp with brass contact
Duty cycle: 200A at 35%
Suitable for light or moderate work
In stock
Soudexpert
Reference: PM-90022
€17.93
€25.62
14,58 € tax excl.
Fast delivery
2-year warranty
Magnetic earth clamp 600 Amperes
Strong clamping force
Reduced electrical voltage drop
Ideal for welding parts with a large flat surface
Cable cross-section: 95 mm²
Magnet length: 133mm x 25mm
Weight: 1690 grams
In stock
Sacit
Reference: F11373
€39.15
31,83 € tax excl.
Fast delivery
2-year warranty
Rotating magnetic earth clamp 400 Amperes
Duty cycle 300 A @ 60% and 400 A @ 35%
Ideal for welding parts with a large flat surface
Maximum cable cross-section: 16-25 / 35-50 mm²
Supplier stock
SOUDO METAL
Reference: 110.00
€23.47
19,08 € tax excl.
Fast delivery
2-year warranty
Screw-lock electrode holder 250 Amperes
Duty cycle 250A @ 35% - 200A @ 60%
Compatible with rutile, basic or cellulosic electrodes Ø 1.6 to 4 mm
Maximum cable cross-section: 35 mm²
Electrode locking by screw
Left-hand thread
Full insulation
Compliant with standard EN-60-974-11
In stock
Soudexpert
Reference: 34009
€14.86
€29.73
12,09 € tax excl.
Fast delivery
2-year warranty
Screw electrode holder 400 Amperes
Right-hand thread
For electrodes Ø 1.6 to 6.3 mm
Rotating handle for secure grip
Head and handle fully insulated
2 electrode positions: 90° for flat welding and 45° for positional work
Current capacity: 400 A
Duty cycle: 35% at 400 A and 60% at 310 A
Total length: 250 mm
Maximum cable cross-section: 50 mm²
In stock
Soudexpert
Reference: PM-500A
€10.20
8,29 € tax excl.
Fast delivery
2-year warranty
500A earth clamp
Steel sheet earth clamp with brass contact
Duty cycle: 500A at 35%
Use for light or moderate work
Supplier stock
Sacit
Reference: DELTA 6
€27.42
22,29 € tax excl.
Fast delivery
2-year warranty
Screw-on earth clamp 600 Amperes
Duty cycle 600 A @ 35% and 500 A @ 60%
Special rubber handle with metal core
Ideal for fixed machines and high amperage use
Maximum cable cross-section: 70-95 mm²
In stock
SOUDO METAL
Reference: 170.00
€9.74
7,92 € tax excl.
Fast delivery
2-year warranty
Screw-type electrode holder 150 Amperes
Duty cycle 200 A@35% - 150 A@ 60%
Compatible with rutile, basic or cellulosic electrodes from Ø 1.6 to 4 mm
Maximum cable cross-section: 35 mm²
Electrode locking by screw
RIGHT-hand thread
Full insulation
Compliant with standard EN-60-974-11
In stock
Soudexpert
Reference: PM-90021
€10.76
€15.38
8,75 € tax excl.
Fast delivery
2-year warranty
Magnetic ground clamp 400 Amperes
Strong hold
Reduced electrical voltage drop
Ideal for welding parts with a large flat surface
Cable cross-section: 70 mm2
Magnet length: 94mm x 36mm
Weight: 850 grams
In stock
Soudexpert
Reference: 33005
€12.81
€25.62
10,42 € tax excl.
Fast delivery
2-year warranty
Screw electrode holder 300 Amperes
Right-hand thread
For electrodes Ø 1.6 to 3.2 mm
Rotating handle for secure grip
Head and handle fully insulated
2 electrode positions: 90° for flat welding and 45° for positional work
Current capacity: 300 A
Duty cycle: 35% at 300 A and 60% at 250 A
In stock
Soudexpert
Reference: PE-300IT
€9.69
€19.37
7,88 € tax excl.
Fast delivery
2-year warranty
Lever electrode holder 300 Amperes
For electrodes Ø 1.6 to 5 mm
Fully insulated head and handle
2 electrode positions: 90° for flat welding and 45° for positional work
Maximum cable section: 50 mm²
Cable clamped by hexagonal nuts
Current capacity: 300 A
Duty cycle: 300 A at 35% and 250 A at 60%
Compliant with standard EN-60-974-11
In stock
Sacit
Reference: PERFECTA 3
€27.42
22,29 € tax excl.
Fast delivery
2-year warranty
Lever electrode holder 250 Amperes
Duty cycle 250 A@35% - 200 A@ 60%
Electrode fixing in 9 positions
Compatible with rutile, basic or cellulosic electrodes Ø 1.6 to 4 mm
Maximum cable cross-section: 35 mm²
Cable clamped by hexagonal nuts
Die-cast brass lever
Electrode fixing in 9 positions
Compliant with standard EN-60-974-11
Screw-type electrode holder 400 Amperes - STUBBY®400
Duty cycle 300A @ 60% - 400 A@ 35%
Compatible with rutile, basic or cellulosic electrodes Ø 1.6 to 6.3 mm
Maximum cable cross-section: 50 mm²
Electrode locking by screw
Right-hand thread
Full insulation
Compliant with standard EN-60-974-11
