SILICONI | SUPER BALL - Gas leak detector

PENTRIX 100 is a red penetrant liquid in aerosol form, formulated to reveal cracks, crazes or porosity caused by welding on ferrous materials and other metals.
Thanks to its intense colour and composition, PENTRIX can penetrate the most complex areas and reveal cracks and crazes caused by welding.

400 ml aerosol

INSTRUCTIONS FOR USE
Shake well before use.
1. Degrease and clean the surface to be treated with METACLEAN aerosol degreaser;
2. Spray PENTRIX 100 on the parts to be inspected;
3. Wait 10 to 70 minutes for the product to fully penetrate.
4. Clean the treated surfaces with water or solvent. Do not spray solvent aerosol directly onto treated surfaces as this could remove all of the red liquid.

CHARACTERISTICS
Base: Mixture of petroleum distillates, dyes and surface tension protectors.
Appearance: Red liquid
Propellant: Denatured hydrocarbon, non-toxic and odourless
CFC-FREE

3 products for complementary use:

PENETRANT:
Red dye used to highlight small defects that may cause leaks.

DEVELOPER:
White powder product. It is used in conjunction with the PENETRANT and highlights small defects that may cause leaks.
Its white powder draws out by capillary action the red penetrant embedded in the crack from a thickness of 30 microns.
Easy to apply, non-destructive testing.

CLEANER:
Surface cleaner to be used before and after dye penetrant testing.
Penetrates into the smallest cracks and removes excess PENETRANT.

RIVELEX 200 is an aerosol product for detecting cracks or porosity caused by welding in all types of materials. Thanks to its composition, RIVELEX 200 can be applied very quickly, as it contains fast-evaporating solvents that leave a white powder on treated surfaces, enabling crack detection.
It can be used with red and fluorescent penetrants (PENTRIX 100).

400 ml aerosol

INSTRUCTIONS FOR USE
Shake the aerosol for at least one minute before use.
Spray RIVELEX 200 at a distance of approximately 20 to 30 cm onto the part that has been previously treated with a liquid penetrant.
Wait 10 to 20 minutes for the product to be fully effective.
Then inspect the treated materials.
This product causes no damage to treated materials.
The bases used comply with the regulations, ASME 2644 type II; MIL-I-25135 form D type II..

CHARACTERISTICS
Base: Mixture of solvents and white powders
Propellant: Denatured hydrocarbon, odorless
Appearance: White liquid
CFC-FREE

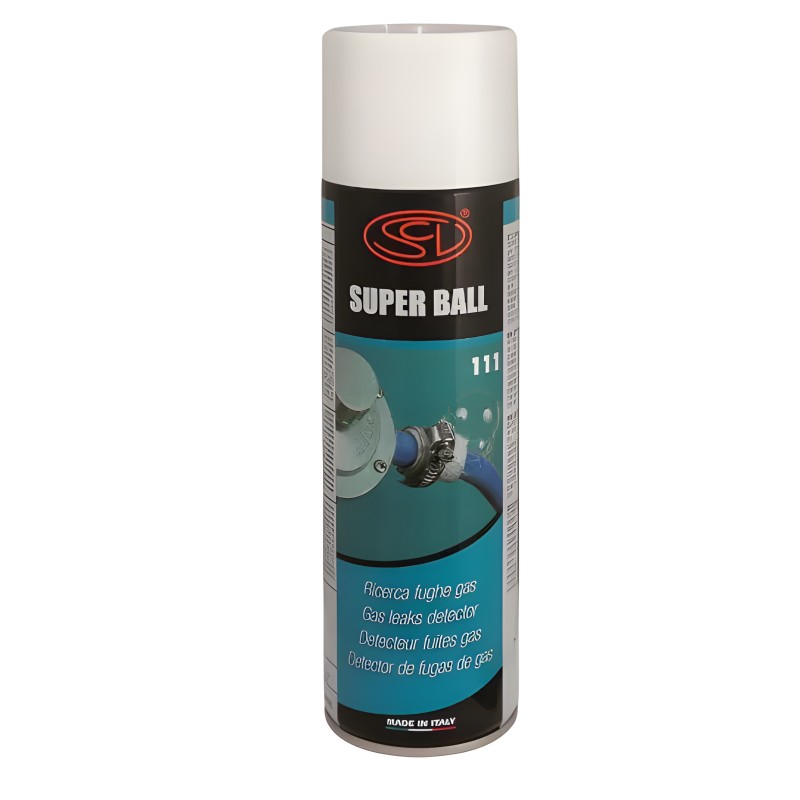

The DETECT FUITES is a water-based product containing an antifreeze additive, anti-corrosion additives and surfactants that give it very high efficiency in immediately locating gas leaks on all circuits. It can be used with all types of gas (compressed air, hydrocarbons, CO2, nitrogen… except pressurised oxygen)
The DETECT FUITES works by forming air bubbles around the gas leak. The DETECT FUITES is frost-resistant and can be used down to -20°C.
The DETECT FUITES is over 80% biodegradable.
Safe to use on pneumatic circuits, fittings, valves, taps, safety valves or cylinders.

MAIN FEATURES
• Immediately visible detection
• Instant bubble or foam formation
• Neutral towards substrates
• Non-flammable
• Over 99% biodegradable
• Leaves no residue
• Contains anti-corrosion agents
• Formulated with an antifreeze agent -20°C
• Do not use on pressurised oxygen — use DETECTO FUITES Ref.: 005511
• Aerosol usable in all positions
FIELDS OF APPLICATION
• Suitable for detecting leaks of:
• Compressed air, CO², Nitrogen
• Butane, Propane
• Gas used in air conditioning systems
• Refrigerant gas
• Leak detection on: • Pipework, • Valves, • Fittings, • Gate valves, • Safety valves, • Gas cylinders

Net capacity 400 ml - 650 ml aerosol can.
Made in France.
