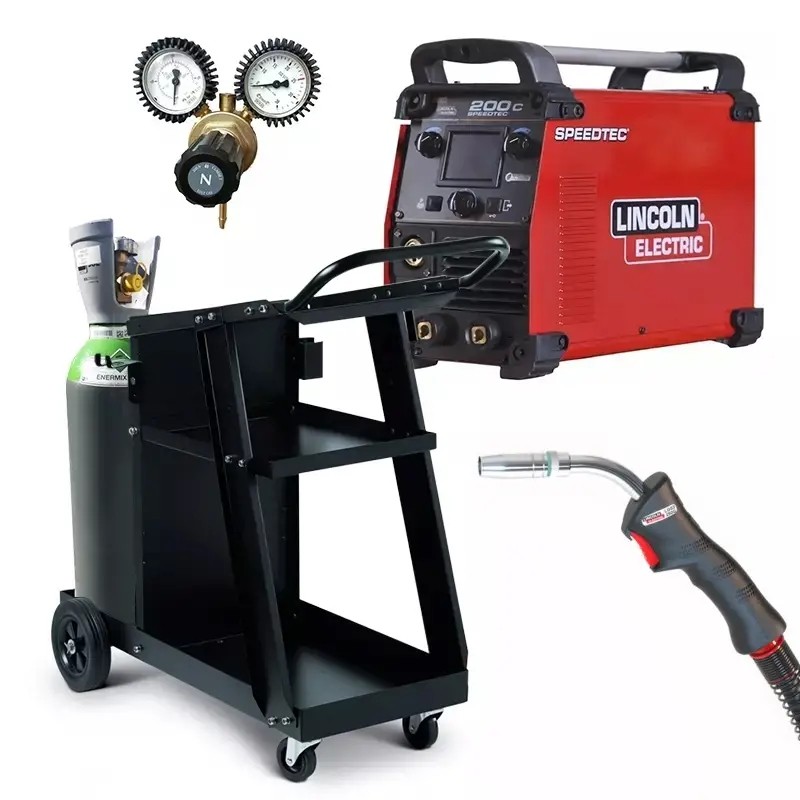

Characteristics of PACK: LINCOLN 200C welder + 3 m torch + Regulator + Gas + trolley
| Supply voltage (in Volts) |
50 / 60 Hz - 230 Volts |
Fuse (in Amperes) |
16 / 25 A |
| MMA power range (in Amperes) |
20 - 160 A |
MIG welding adjustment range (in Amperes) |
20 - 200 A |
| TIG welding adjustment range (in Amperes) |
20 - 160 A |
Duty cycle at 40°C MMA |
160 A@30% - 100 A@100% |
| MIG-MAG duty cycle at 40°C |
200A@25% - 110A@100% |
TIG 40° DC duty cycle |
160 A@30% - 100 A@100% |
| Open circuit voltage (in Volts) |
51 |
Possible electrode type |
Rutile - basic |
| Usable rutile electrode diameter (Ø) for the unit (in mm) |
1.6 to 4 mm |
Ø basic electrode usable by the unit (in mm) |
2 to 4 mm |
| Usable Tungsten electrode diameter (Ø) |
1 to 4 mm |
Nature of materials to be TIG welded |
steel, stainless steel, copper, cast iron, titanium, nickel |
| Uses spools of diameter |
200 mm |
Uses steel wire diameter |
0.6 to 1 mm |
| Uses stainless steel wire diameter |
0.8 - 1 mm |
Uses aluminum wire diameter |
0.8 to 1 mm |
| Uses flux-cored wire (gasless) diameter |
0.8 mm - 0.9 mm - 1.2 mm |
Ventilated |
Yes |
| Overvoltage thermostatic protection |
Yes |
Nature of materials to be MMA welded |
Steel - Stainless steel - Cast iron |
| Welding process |
MMA - MIG - TIG |
Warranty |
2 years |
| Dimensions (in mm) |
396 x 246 x 527 |
Weight in kg |
17 |
| Number of drive rolls |
2 rollers |
Protection rating |
IP23 |
| Suggested generator power |
8 Kwa |
|
|
