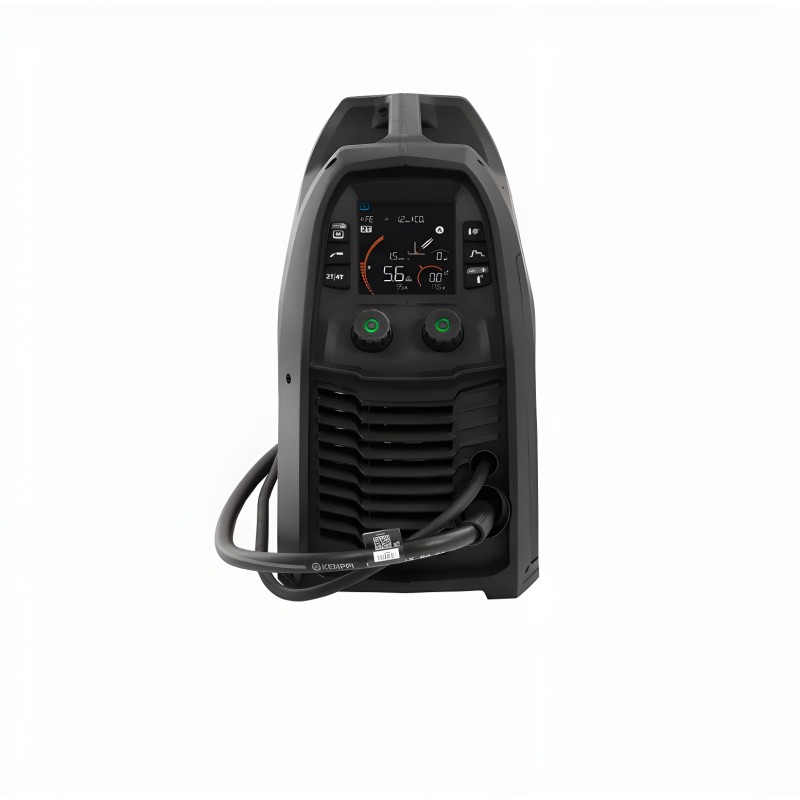

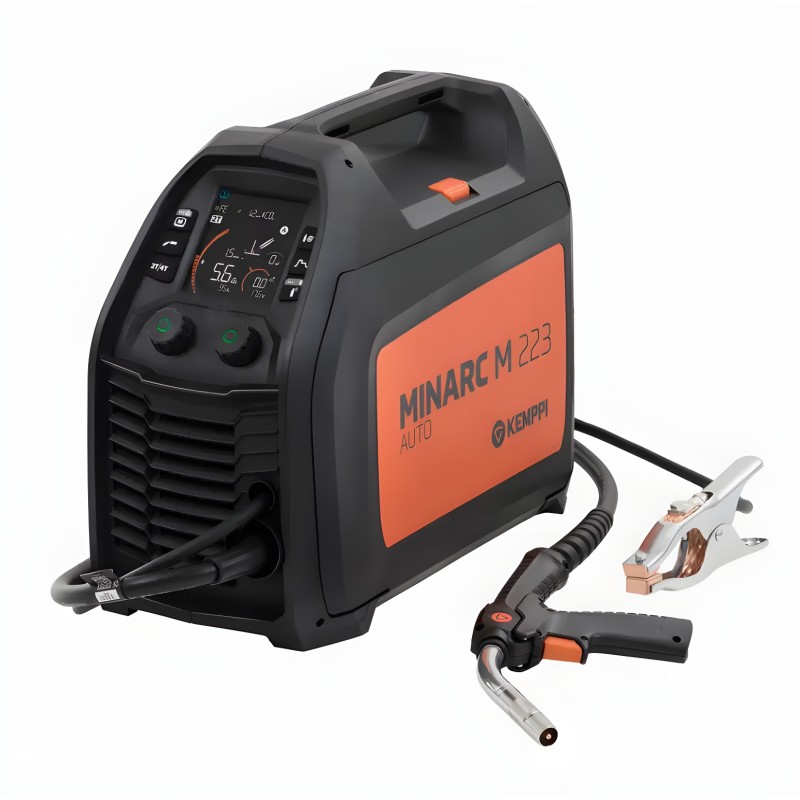

KEMPPI - MINAR MIG M 223 with integrated 3M torch
Reference: MIM223GM
KEMPPI - MINAR MIG M 223 with integrated 3M torch
€2,105.80
€1,895.22
1 540,83 € tax excl.
Supplier stock
Dispatched within 5 to 7 days
KEMPPI - MINAR MIG M 223 with integrated 3M torch
Description
Premium portable MIG/MAG welding machine 110/240 V, delivering 220 A at 20% duty cycle on single-phase power supply, weighing 12 kg. Available with manual and synergic welding options. The welding machine can be used with a generator and features five memory channels. Compatible with many materials, including steel (Fe), stainless steel (Ss), aluminium (Al), CuSi, as well as flux-cored wires and gasless filler wires. The pack includes a welding machine, a gas hose, a drive roller, a shoulder strap, a ground cable, a power cable plug, a gun handle and a welding torch.
Characteristics of KEMPPI - MINAR MIG M 223 with integrated 3M torch
| Supply voltage (in Volts) | 50 / 60 Hz - 230 Volts | Fuse (in Amperes) | 16 A |
| MIG welding adjustment range (in Amperes) | 20 - 220 A | MIG-MAG duty cycle at 40°C | 220 A @ 20 % |
| Uses steel wire diameter | 0.6 to 1.2 mm | Uses stainless steel wire diameter | 0.6 to 1 mm |
| Uses aluminum wire diameter | 0.8 to 1.2 mm | Ventilated | Yes |
| Nature of materials to be MMA welded | steel - stainless steel - aluminum - ferrous metals | Warranty | 3 years |
| Dimensions (in mm) | 460 x 221 x 365 | Weight in kg | 12 |
| Suggested generator power | 8kW - 10kVA | Usage | Professional, Industry |
| Uses spools of diameter | Ø200mm | Synergy | Yes |
Documents
Expert advice for professionals and individuals
Benefit from the support of specialists, whatever your profile.
Secure payment
Your transactions are protected by the latest security technologies.
Express delivery in 24/48 h
Fast dispatch to France, Europe and overseas territories upon confirmation of your order.
Best price guaranteed
Enjoy the most competitive prices on the market all year round.
16 other products in the same category:
Save 5%
In stock
Lincoln Electric
Reference: K14098-1
(1 review)
€1,332.83
€1,402.97
1 083,60 € tax excl.
or 4 x 333,21 €
Free delivery
2-year warranty
This Inverter technology machine Lincoln Speedtec 180C allows you to weld using 2 processes: MMA-MIG-MAG
It allows welding with rutile and basic electrodes (stainless steel - cast iron, etc.) of Ø 1.6 to 4 mm (electrode holder not included)
It operates on a 16 A or 25 A - 230 V domestic outlet depending on the amperage setting.
Its adjustment range is 20 to 200 A for MIG-MAG welding and 20 to 160 A for MMA welding.
Easy polarity reversal to allow the use of flux-cored wire (gasless) of Ø 0.9 and 1.2 mm.
It features the following devices:
PFC (power factor corrector) It can be used with a 100 m extension cord without any power loss.
The power supply can be provided from a generator.
HOT START adjustable, which reduces the risk of sticking when the electrode and workpiece are cold, also facilitates arc ignition and penetration.
ARC FORCE adjustable, which maintains constant amperage regardless of arc length.
ANTI-STICKING reduces the risk of the electrode sticking to the workpiece.
Its advantages:
The high duty cycle of this machine guarantees use without premature triggering of the thermal protection system.
This machine is delivered with:
1 power cable 2 m
1 gas hose 2 m
1 ground cable 3 m
1 set of rollers Ø 0.8 and 1 mm for steel welding wire
Supplier stock
Gys
Reference: 065093
(5 reviews)
€1,383.75
1 125,00 € tax excl.
or 4 x 345,94 €
Free delivery
2-year warranty
Welds steel, stainless steel and aluminium from 0.6 to 6mm in all positions
MIG duty cycle: 130A at 60% / 110A at 100%
MMA duty cycle: 110A at 60% / 90A at 100%
TIG duty cycle: 135A at 60% / 115A at 100%
Current range: 20 to 200A - Voltage: 76V
Combines 4 welding processes in 1 unit:
- MIG/MAG with gas (steel/stainless wire Ø 0.6/0.8 to 1.6 mm and Alu 0.8 to 1.6mm)
- MIG/MAG gasless (flux-cored wire Ø 0.9 to 1.2 mm)
- TIG Lift DC current - Lift Arc TIG starting
- MMA (basic and rutile electrodes up to 5 mm)
2 drive rolls for spool Ø 100 mm (1 kg) or Ø 200 mm (5kg)
Removable MAG torch 250A (2T/4T) 3m (8mm contact tip)
Digital interface and very intuitive adjustment
Compatible with 9 kVA generator
Single-phase 230 V - 16 A power supply
Dimensions: 25 x 45 x 35 cm - 16kg
IP21 rating
Supplied with:
1 x 250 A steel torch 3m MB25
1 x 200 A earth clamp 2.5m
1 x MMA electrode holder 2m
1x 0.8/1 mm drive rolls
TIG torch optional
Save 7%
In stock
Telwin
Reference: 816232
(32 reviews)
€1,035.41
€1,113.34
841,83 € tax excl.
or 4 x 258,85 €
Free delivery
2-year warranty
This tri-technology unit allows you, with a single machine, to weld in MMA, semi-automatic (MIG-MAG) and TIG modes.
MMA (electrode) and TIG welding solutions are available as options.
As standard, this semi-automatic unit features 17 programmed settings. The user simply needs to select the type of metal and the wire diameter. It is also possible to weld in manual mode by directly adjusting the settings parameters.
This welding unit uses wire on a spool. This welding process allows welding of thin materials (0.6 mm).
Very practical on thin sheets (automotive bodywork, chassis...), it avoids the weld bead restart that occurs when changing an electrode.
With the addition of a shielding gas, this unit enables welding on aluminium, stainless steel and steels in MIG-MAG and MMA mode, and steel, stainless steel and ferrous alloys in TIG mode.
Using a suitable wire of the CU Si3 type, it enables welding of HSS, EHS, UHS steels (automotive bodywork)
MIG welding with gas shielding requires the use of pure Argon gas for aluminium welding or an Argon + CO² mixture for steels and stainless steels.
Special case: For steel, it is possible to weld without gas when using flux-cored wire (which allows, for example, easier outdoor use). In this case, the thickness of the steel sheets must not be less than 1 mm to avoid the risk of burn-through.
This unit uses Ø 200 mm and 300 mm wire spools (flux-cored wire in 2 kg and other wires in 5 and 15 kg). An adapter for Ø 100 mm spools is available as an option.
Upon delivery, this unit includes:
1 Mig 180 A torch (3 metres)
1 earth clamp + 1.9 m cable.
1 roller for steel/stainless steel wire Ø 0.6 and 0.8 mm.
1 steel/stainless steel contact tip Ø 0.8 mm
1 gas hose for refillable cylinder
TIG welding with gas shielding requires the use of pure Argon gas for welding steels, stainless steels, ferrous alloys and copper...
As an option:
It is possible to add an electrode holder with a 3 m cable in order to weld with electrodes from Ø 1.6 mm to 4 mm.
Reference KIT000514
It is possible to add a TIG torch 4 m in length in order to weld in TIG mode using pure Argon shielding gas.
For connecting the unit to gas, it is recommended to use the 804208 fitting.
In stock
Gys
Reference: 032903
(7 reviews)
€1,537.50
1 250,00 € tax excl.
or 4 x 384,38 €
Free delivery
2-year warranty
SEMI-AUTOMATIC WELDING MACHINE (MIG/MAG)
Ideal for maintenance and automotive body repair work.
Adjustment range from 15 to 160A
For wire diameter 0.6 to 1mm: steel, stainless steel and aluminium
Simple and fast adjustment: in synergic mode, the machine automatically sets the ideal wire speed.
Expandable, it can be fitted with a spool gun torch
3 available modes:
Standard (2T).
- Spot, plug welding function.
- Delay, stitch point function.
Delivered with:
1 150A torch length 3 m, fitted with a Ø 0.8 mm contact tip.
1 200 A earth clamp cable length 3 m
1 reversible roller for steel wire Ø 0.6/0.8 mm.
This product is Euro Welding's choice
In stock
Gys
Reference: 033160
(122 reviews)
€499.34
406,00 € tax excl.
or 4 x 124,84 €
- Last transformer welder
- Robust and powerful
- Weld with and without gas
Free delivery
2-year warranty
Portable welding unit with electrical transformer
Ideal for craftsmen and home users
Designed to weld steel, stainless steel and aluminum in non-intensive use
Setting assistance thanks to the SMART table
Duty cycle: 115A@20% - 40°C
Current range: 30 to 160A
Combines 2 processes:
- MIG/MAG for workshop welding wire Ø 0.6 to 1 mm
- NO GAS for outdoor welding flux-cored wire Ø 0.9 and 1.2 mm
2-roll wire feeder for Ø100 mm spool (1 kg) and Ø200 mm (5 kg)
Detachable 150A 2.2 m torch (0.8 mm contact tip)
Single-phase 230 V - 16 A power supply
Protection rating: IP21
Dimensions: 33 x 54 x 45 cm - 30.5 kg
Supplied with:
- 1x Ground clamp (1.6 m cable / 16 mm²)
- 1x Contact tip Ø 6 mm - M6
- 2x Contact tips Ø 8 mm - M6
- 1x Removal key for contact tips
- 1x Gas hose + 2 clamps
- 2x Bottle fixing straps
Save 20%
Supplier stock
Gys
Reference: 033993
€275.86
€344.83
224,30 € tax excl.
or 3 x 91,95 €
Free delivery
2-year warranty
Portable welding machine with electric transformer
Ideal for home users and maintenance work
Designed for assembling, repairing sheet metal or steel sections
Setting assistance via the SMART table
Duty cycle: 85A@6% - 40°C
Current range: 40 to 110A
Welding NO GAS only for flux-cored wire Ø 0.6 to 0.9 mm
2-roller wire feeder for Ø100 mm spool (1 kg)
Fixed torch 150A 2.2m (0.9mm contact tip)
Single-phase power supply 230 V - 16 A
Dimensions: 34 x 17 x 34 cm - 23.3kg
Supplied with:
- 1 earth clamp (cable 1.6 m / 16 mm²)
Save 30%
In stock
Lincoln Electric
Reference: B18264-1
€691.88
€988.40
562,51 € tax excl.
or 4 x 172,97 €
Free delivery
2-year warranty
This BesterMIG 200-S Multi multi-process machine allows MMA - MIG-MAG - TIG welding
Its digital display makes it easy to read the setting information
It accepts wire spools of diameter 100 and 200 mm.
Its low weight makes it an easy ally when transporting on site. It can also be powered by a generator.
No longer worry about choosing the welding current, wire speed or material thickness. The Synergic system does it for you while guaranteeing perfect welds.
The Synergic system limits the risk of weld defects and ensures excellent quality at reduced costs.
Weld with complete peace of mind: automatic parameter adjustment saves welding time and increases your productivity
Easy polarity change for welding with flux-cored wire (gasless).
It features the following functions:
Arc-Force
Hot-Start
Anti-Stick
It is supplied with:
1 MIG-MAG torch length 3 m equipped with a contact tip for steel or stainless steel wire Ø 0.8 mm.
1 Earth clamp + Cable cross-section 16 mm² length 3 m
1 Electrode holder + cable length 3 m
1 Power supply cable length 3 m
1 Reversible drive roll for steel or stainless steel wire Ø 0.8 / 1 mm fitted on the machine
1 Reversible drive roll for steel or stainless steel wire Ø 0.6 / 8 mm
1 Shielding gas hose for refillable cylinder length 2 m
In stock
Gys
Reference: 065482
(3 reviews)
€1,218.72
990,83 € tax excl.
or 4 x 304,68 €
Free delivery
2-year warranty
Wheeled generator
Welds steel, stainless steel and aluminum
MIG duty cycle: 160A at 60% / 120A at 100%
MMA duty cycle: 140A at 60% / 100A at 100%
Amperage range: 30 to 220A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless wire Ø 0.6 to 1 mm and aluminum 0.8 to 1 mm)
- MIG/MAG gasless (flux-cored wire Ø 0.9 to 1.1 mm)
- MMA (basic and rutile electrodes up to 5 mm) with Anti-stick function
4 drive rolls for Ø 200 mm (5 kg) or Ø 300 mm (15 kg) spools
Removable 250A MAG torch (2T/4T) 3 m (8 mm contact tip)
Digital interface with highly intuitive settings
Compatible with 9 kVA generator
Gas cylinder support for cylinders up to 4 m³
Single-phase 230 V - 16 A power supply
Dimensions: 77 x 79 x 47 cm - 32 kg
IP23 rating for outdoor use
Accepts long extension cords (100 m)
Included in the box:
1x 250A torch 3 m
1x ground clamp 2.5 m 25 mm²
1x electrode holder 2.5 m 25 mm²
User manual included
Supplier stock
Gys
Reference: 074996
€2,613.75
2 125,00 € tax excl.
or 4 x 653,44 €
Free delivery
2-year warranty
Welds steel, stainless steel and aluminium from 0.6 to 6mm in all positions
MIG duty cycle: 150A at 60% / 130A at 100%
MMA duty cycle: 150A at 60% / 130A at 100%
TIG duty cycle: 150A at 60% / 130A at 100%
Current range: 20 to 250A - Voltage: 76V
Combines 4 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless steel wire Ø 0.6 to 1.2 mm and aluminium Ø 0.9 to 1.2 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- TIG Lift DC current - Lift TIG ignition
- MMA (basic and rutile electrode up to 5 mm)
4 rollers for Ø 200 mm (5 kg) or Ø 300 mm (15 kg) spools
Removable EURO 250A 3m STEEL MIG torch (1.2 mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 9 kVA generator and 100m extension lead
Cylinder support included
Single-phase 230 V - 16 A power supply
Dimensions: 75 x 45 x 80 cm - 45 kg
IP23S rating for outdoor use
Supplied with:
1 x 250 A 3m MB25 torch
1 x 3m earth clamp
2x 0.8-1.0 rollers
Supplier stock
ESAB
Reference: 0700300985
€2,454.87
1 995,83 € tax excl.
or 4 x 613,72 €
Free delivery
2-year warranty
This multi-process unit allows you to weld: MIG-MAG including flux-cored wire, MMA, and DC TIG
The sMIG ("smart MIG") function allows the system to "learn" and constantly adapt to the operator's welding technique to deliver a stable, reproducible arc
The innovative user interface with large TFT screen offers a clear view of welding parameters and settings
Unique industrial design with five-handle protection cage and monobloc steel structure housed in a light and highly mobile unit; full three-year warranty
Supplied ready to weld with the following consumables and accessories:
• ESAB MXL 200 MIG torch, 3 m
• M6 contact tip for 0.8 mm wire (qty 2)
• M6 contact tip for 1.0 mm wire (qty 2)
• Gas hose, 4.5 m, quick connector
• Electrode holder + 3 m cable
• Earth clamp + 3 m cable
• Steel wire spool Ø0.8 mm weighing 5 kg
• Reversible drive roll for 0.6/0.8 mm steel wire (installed in the drive system)
• Reversible drive roll for 0.8/1.0 mm steel wire
• 0.6 mm – 0.8 mm wire liner (installed in the MIG torch)
• 3 m power cable, fitted with plug
• Safety manual
• USB user manual
Optional: SR17 TIG torch
Supplier stock
Gys
Reference: 032248
(7 reviews)
€538.13
437,50 € tax excl.
or 4 x 134,53 €
Free delivery
2-year warranty
Ideal for craftsmen or home users
Welds steel, stainless steel and aluminum occasionally
Duty cycle: 140A@15% - 40°C
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (solid wire Ø 0.6 to 0.8 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 mm)
- MMA (electrode Ø 1.6 to 2.5 mm) with Antisticking function
2-roller wire feed for spool Ø 100 mm (1 kg) or Ø 200 mm (5 kg)
Removable MAG torch 150A, 2.20m
Very intuitive interface and settings
Compatible with 8 kVA generator
Single-phase power supply 230 V - 16 A
Dimensions: 40 x 20 x 33 cm - 15 kg
Delivered with:
- 1 ground clamp (cable 1.6 m / 16 mm2)
- 1 electrode holder (cable 1.6 m / 16 mm2)
- 1 accessories bag (Contact tip 0.9mm, Gas nozzle, Tightening wrench, Gas hose 1m with 2 clamps)
Telwin
Reference: 816284
€2,971.42
2 415,79 € tax excl.
or 4 x 742,86 €
Free delivery
2-year warranty
TECHNOMIG 223 TREO SYNERGIC 230V TELWIN WELDING MACHINE
Inverter multiprocess welding machine MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift controlled by microprocessor.
Particularly designed for bodywork applications, it allows immediate use of three different torches, two traditional MIG torches and one spool gun.
This feature enables direct intervention on different materials without needing to replace the torch and wire spool.
The traditional MIG torches are designed for welding steel, high-strength HLE steels, as well as stainless steel and braze-welding of galvanised sheets; the spool gun torch is specifically designed for aluminium even at a significant distance from the generator.
The SYNERGIC quick adjustment of welding parameters, thanks to ONE TOUCH LCD SYNERGY technology, makes the product very easy to use.
ATC technology, Made in Telwin, makes it easy to achieve excellent welds on thin thicknesses thanks to advanced arc control. It is also possible to intervene manually on arc length: this adjustment allows the shape of the weld bead to be modified according to the welder's style.
The ONE TOUCH LCD graphic display enables better reading of all welding parameters.
Characteristics:
- 17 pre-set synergic curves
- LCD screen display of welding parameters
- 2/4 stroke, spot operation selection
- Thermostatic, overvoltage, undervoltage, overcurrent, motor-generator protections (+/- 15%).
Supplied with:
1x Cable with earth clamp (3 metres) 16 mm² - 10/25 connectors
1x MIG torch MB15 STEEL (3 metres) Euro connector
1x MIG torch MB15 ALU (3 metres) - Euro connector
1x SPOOL GUN torch M6
1x Gas hose
1 Set of 2 drive rolls for steel or stainless wire Ø 0.6 / 0.8 mm (mounted on the machine).
User manual
2-YEAR WARRANTY
Save 10%
In stock
Gys
Reference: 078727
(3 reviews)
€804.62
€894.03
654,17 € tax excl.
or 4 x 201,16 €
Free delivery
2-year warranty
Multi-process welding machine for professionals
Welds steel, stainless steel and aluminum up to 3mm thick
MIG duty cycle: 110A@ 60%-40°C
MMA duty cycle: 100A@ 60%-40°C
Current range: 20 to 150A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (solid wire Ø 0.6 to 0.8 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.6 to 0.9 mm)
- MMA (electrode Ø 1.6 to 3.2 mm) with Anti-Sticking function
4-roll wire feeder for Ø 200 mm (5 kg) or Ø 300 mm (15 kg) spools
Removable MAG torch 150A 3m
Digital interface with very intuitive adjustment
Compatible with 8kVA generator
Single-phase power supply 230 V - 16 A
Dimensions: 53 x 28 x 45 cm - 16.5 kg
Delivered with:
1x 150A 3m torch
1x 2m 16mm² earth clamp
1x 2m 16mm² electrode holder
1 gas hose 1m + 2 hose clamps
1 contact tip wrench
1 contact tip 0.9 + nozzle for gasless wire
Save 20%
In stock
Soudexpert
Reference: 275602
€251.13
€313.91
204,17 € tax excl.
or 3 x 83,71 €
Free delivery
2-year warranty
MIG Welding - WITH AND WITHOUT GAS -
Welds wire Ø 0.8 and 1mm
4 processes: MIG-MAG with and without gas, MMA and TIG Lift
Uses 1kg (Ø100mm) and 5kg (Ø200mm) spools
Synergy function
LCD screen for very intuitive adjustment
Open circuit voltage: 62V
Power: 50-160A - 6 kVA
Weight: (9kg)
Single-phase 230 V - 16 A power supply
Compact size and carrying handle
Dimensions: 49x22x37cm
2-year warranty
Delivered with:
1 Electrode holder + 16 mm² cable 3 meters long + 1 Ground clamp + 16 mm² cable 3 meters long
MIG torch 2 meters long, 0.8 and 1.00mm roller
1.5-meter power cable
Supplier stock
Lincoln Electric
Reference: B18266-1
(1 review)
€890.73
724,17 € tax excl.
or 4 x 222,68 €
Free delivery
2-year warranty
This BesterMIG 215-S Multi multiprocess unit allows MMA - MIG-MAG - TIG welding
Its digital display makes it easy to read the adjustment information
It accepts wire spools of diameter 100 and 200 mm.
Its low weight makes it an easy ally when transporting to a worksite. It can also be powered electrically by a generator.
No longer worry about choosing the welding current, wire speed or material thickness. The Synergic system does it for you while guaranteeing perfect welds.
The Synergic system limits the risk of welding defects and ensures excellent quality at reduced costs.
Weld with complete peace of mind: automatic parameter adjustment saves welding time and increases your productivity
Easy polarity change for welding with flux-cored wire (gasless).
It features the following functions:
Arc-Force
Hot-Start
Anti-Stick
It is delivered with:
1 MIG-MAG torch 4 m length fitted with a contact tip for steel or stainless wire Ø 0.8 mm.
1 Earth clamp + Cable section 16 mm² length 3 m
1 Electrode holder + cable length 3 m
1 Power supply cable length 3 m
1 Reversible roller for steel or stainless wire Ø 0.8 / 1 mm mounted on the unit
1 welding gas hose for refillable cylinder length 2 m
This product is Euro Welding's choice
In stock
Telwin
Reference: 816231
(102 reviews)
€849.89
691,00 € tax excl.
or 4 x 212,47 €
- MIG-MAG Up to 210A
- 3 processes in 1
- Synergic function
Free delivery
2-year warranty
Semi-automatic multi-process MIG-MAG welding machine
This welding machine uses spool wire. This welding process allows welding of thin material (0.6 mm).
Very practical on thin sheet metal (automotive bodywork, chassis...), it avoids the weld bead restart that occurs when changing an electrode.
With the addition of a shielding gas, this machine enables welding of aluminium, stainless steel and steels in MIG-MAG mode.
MIG welding under gas shielding requires the use of pure Argon gas for aluminium welding or an Argon + CO² mixture for steels and stainless steels.
Special case: For steel, it is possible to weld without gas when using flux-cored wire (this allows, for example, easier outdoor use). In this case the thickness of steel sheets must not be less than 1.2 mm without risk of burn-through.
This machine uses wire spools of Ø 100 and 200 mm.
It is supplied with
1 MIG torch 180 A EURO connector (cable length 3 m) + 1 earth clamp (cable length 1.9 m).
1 reversible roller for steel - stainless steel wire Ø 0.6 / 0.8 mm.
1 gas hose length 1 m + hose clamp. This hose fits onto a regulator for refillable cylinders.
Its Plus Points!
Storage compartment for the torch and earth clamp.
Optional
Electrode holder for coated rod welding.
TIG torch for welding steel and stainless steel, touch start ignition
For connecting the machine to gas, it is recommended to use the 804208 fitting.
KEMPPI - MINAR MIG M 223 with integrated 3M torch
