Duty cycle DC 140 A at 35 %.
AC 125 A at 35 %.
Air cooling
Recommended electrode Ø 1.6> 4.0 mm.
Original single-button module.
Cable assembly length 4 m
Torch weight
4 m (2.7 kg)
Lightweight and easy-to-handle torch
Optional mesh diffuser for uniform gas distribution
Universal connector (Ø 35/50 mm Amphenol)
116,00 € tax excl.
Duty cycle DC 140 A at 35 %.
AC 125 A at 35 %.
Air cooling
Recommended electrode Ø 1.6> 4.0 mm.
Original single-button module.
Cable assembly length 4 m
Torch weight
4 m (2.7 kg)
Lightweight and easy-to-handle torch
Optional mesh diffuser for uniform gas distribution
Universal connector (Ø 35/50 mm Amphenol)
Description
The air-cooled TIG 17 welding torch perfectly meets welders' needs for carrying out the most diverse work, ensuring consistent and reliable welding. The highly flexible cable assembly provides a comfortable grip and facilitates handling. The interchangeable buttons allow adaptation to all welders and transform the torch into a remote control for adjusting the welding current up and down (Potentiometer / Up & Down).
Expert advice for professionals and individuals
Benefit from the support of specialists, whatever your profile.
Secure payment
Your transactions are protected by the latest security technologies.
Express delivery in 24/48 h
Fast dispatch to France, Europe and overseas territories upon confirmation of your order.
Best price guaranteed
Enjoy the most competitive prices on the market all year round.
In stock
Lincoln Electric
Reference: WTT2-17B
€152.73
124,17 € tax excl.
or 3 x 50,91 €
Free delivery
2-year warranty
The BUTTON TIG WTT2-17-EB-C5B torches offer the best performance for optimised welder comfort.
Designed to meet the challenges of a variety of applications on maintenance, manufacturing or construction sites.
High-quality components, a studied and modern design — the guarantee of efficient and comfortable welding for the welder.
The torches are manufactured to high quality standards. Consumables are compatible with international standards.
Duty cycle 135A@35% -100A@60%
Usable electrode diameter: from 1 to 3.2 mm.
Supplied with: one blue lanthanum tungsten electrode Ø 2 mm + ceramic nozzle GR 6 + 1 long cap
BINZEL
Reference: SR 26 L
€183.98
149,58 € tax excl.
or 3 x 61,33 €
Free delivery
2-year warranty
Binzel brand TIG SR26 L flexible head torch.
Length 4 or 8 M.
Air cooling.
Duty cycle:
DC = 240 A @60% - AC = 200 @ 60%
Usable tungsten electrode: diameter 0.5 to 4 mm.
Amphenol 7-pin connector Ø 35/50 mm
Light and easy to use, these torches offer ideal manoeuvrability for smooth welding. The moulded handle with GRIP provides optimal grip for achieving the perfect weld. The SR 26 torch is the most powerful in the air-cooled range.
Compatible with the following GYS TIG welding machines:
220DC FV - 300 DC - 220 AC/DC
In stock
BINZEL
Reference: 087521
€189.63
154,17 € tax excl.
or 3 x 63,21 €
Free delivery
2-year warranty
This GYS TIG PRO 17 brand torch features a EURO connector for connection to your welding machine.
Length 4 M.
Air cooling.
Duty cycle 100A@35%
This torch is compatible in particular with the 3 models of Gys Multipearl welding machines that we sell on our website.
Advantage of this Euro connection torch:
Compared to the TIG SR 17 torch with Gys valve reference W000278880 also compatible with the Gys Multipearl welding machine.
Post-gas with adjustable duration.
This parameter defines the time during which the gas continues to flow after the arc is extinguished. It protects the workpiece and the electrode from oxidation.
Arc fade-out with adjustable duration
This corresponds, at the end of welding, to the time required for the progressive reduction of the welding current until the arc stops. This function prevents cracks and end-of-weld craters. By default, this function is set to 0 sec.
BINZEL
Reference: 044401
€123.00
100,00 € tax excl.
Free delivery
2-year warranty
This GYS TIG torch is delivered with an accessories kit including:
1 tungsten electrode Ø 1.6 and 1 tungsten electrode Ø 2.4 mm
1 ceramic nozzle no. 5 and 1 ceramic nozzle no. 11
1 collet body, collet and nozzle Ø 1.6 mm and 1 collet body, collet and nozzle Ø 2.4 mm
1 short back cap (for hard-to-reach areas) and 1 standard long back cap
Length 4 m. Quarter-turn 35/50 connector
Duty cycle at 60%: 140 A DC and 125 A AC.
Usable tungsten electrodes: up to 2.4 mm
This torch fits in particular on GYS welding machines with reference:
Progys 200E FV CEL - 250 TRI - CEL 250 TRI - FLEX 250 CEL
In stock
Lincoln Electric
Reference: WTT2-17RL
€128.13
104,17 € tax excl.
Free delivery
2-year warranty
The TIG WTT2-17-RL-C5B flex head torches offer the best performance for optimized welder comfort.
Designed to meet the challenges of a variety of applications on maintenance, manufacturing or construction sites. High-quality components, a studied and modern design — the guarantee of efficient and comfortable welding for the operator.
The torches are manufactured to high quality standards. Consumables are compatible with the international standard.
Duty cycle 135A@35% - 100A@60%
Usable electrode diameter: 1 to 3.2 mm.
Delivered with: a Ø 2 mm blue lanthanum tungsten electrode + GR 6 ceramic nozzle + 1 long cap
Supplier stock
Lincoln Electric
Reference: W000278403-2
€389.50
316,67 € tax excl.
or 4 x 97,38 €
Free delivery
2-year warranty
PROTIG NGS 10W C5B-S TIG torch length 8 m
Duty cycle: 220 A @100%.
Water cooling - Minimum water flow: 1 l/min - Water pressure 3.3 Bar - Maximum water inlet temperature 45°C
Gas flow: Min 7 l/min - Max 13 l/min
This torch is supplied with:
1 long cap
1 nozzle Ø 12 mm
1 tungsten electrode Ø 2.4 mm
In stock
Weldline
Reference: W000278885
€120.95
98,33 € tax excl.
Free delivery
2-year warranty
This type 26 valve torch is supplied with a long cap, 1 blue lanthanum tungsten electrode Ø 2.4 mm, 1 nozzle and a diffuser.
Its length is 4 m - 13 mm connector
Duty cycle: 180 A@35% - 160 A@60%
Accepts tungsten electrodes from 1 mm to 4 mm (with the appropriate diffuser and electrode holder collet).
Supplied with an electrode holder + 1 collet body for tungsten electrode Ø 2.4 mm + 1 ceramic nozzle Ø 12.8 mm
It is used in particular for TIG welding with Inverter machines
DECA:
Mastro 314-416 and 518 HD GEN
JOB 220 - 522 - 523 with adapter (038110 available on the website)
LINCOLN
Bester 170D-ST - 210D-ST-Bester 170D-ND - 210D-ND
TELWIN
Electromig 220 - 300 -400 - 450 -550- Electromig 230 - 330 Wave- Technomig 243 Wave
Superior 400 - 630 CE VRD
Technology 186 XT MPGE - 236 XT - 238 XT CE/MPGE
Advance 227 XT MV/PFC VRD
In stock
ESAB
Reference: 0700300869
€271.62
220,83 € tax excl.
or 3 x 90,54 €
Free delivery
2-year warranty
TIG torch with valve type 17, length 4 m
This torch is suitable for the REBEL 215 C welding machine
Duty cycle: 135 A@35%
Recommended gas flow: 5 to 10 L/minute
Shielding gas: AR or AR/He
Supplied with:
A ceramic nozzle GR 5 - Ø 8MM
A gold cerium electrode Ø 2.4 mm
An electrode holder and diffuser 2.4/3.2 mm
In stock
Gys
Reference: 084117
€286.90
233,25 € tax excl.
or 3 x 95,63 €
Free delivery
2-year warranty
In stock
Weldline
Reference: W000278876
€91.23
74,17 € tax excl.
Fast delivery
2-year warranty
Valve-type TIG torch type 9V delivered with:
1 long cap
1 lanthanum tungsten electrode Ø 1.6 mm
1 nozzle and a diffuser
Its length is 4 m, 9 mm connector
DC duty cycle: 110 A@35% - 80 A@60%
Accepts tungsten electrodes from Ø 1 to 3.2 mm (with the appropriate diffuser and electrode holder collet)
Supplier stock
Lincoln Electric
Reference: WTT2-9
€100.45
81,67 € tax excl.
Fast delivery
2-year warranty
The TIG WTT2-9-RL-C5B flex-head torches offer the best performance for optimised welder comfort.
Designed to meet the challenges of a variety of applications on maintenance, manufacturing or construction sites. High-quality components and a well-thought-out modern design ensure efficient and comfortable welding for the operator.
The torches are manufactured to high quality standards. Consumables are compatible with international standards.
Duty cycle 110A@35% - 80A@60%
Usable electrode diameter: from 1 to 1.6 mm.
Supplied with: one blue lanthanated tungsten electrode Ø 1.6 mm + ceramic nozzle + 1 long back cap
In stock
Gys
Reference: 084131
€198.85
161,67 € tax excl.
or 3 x 66,28 €
Free delivery
2-year warranty

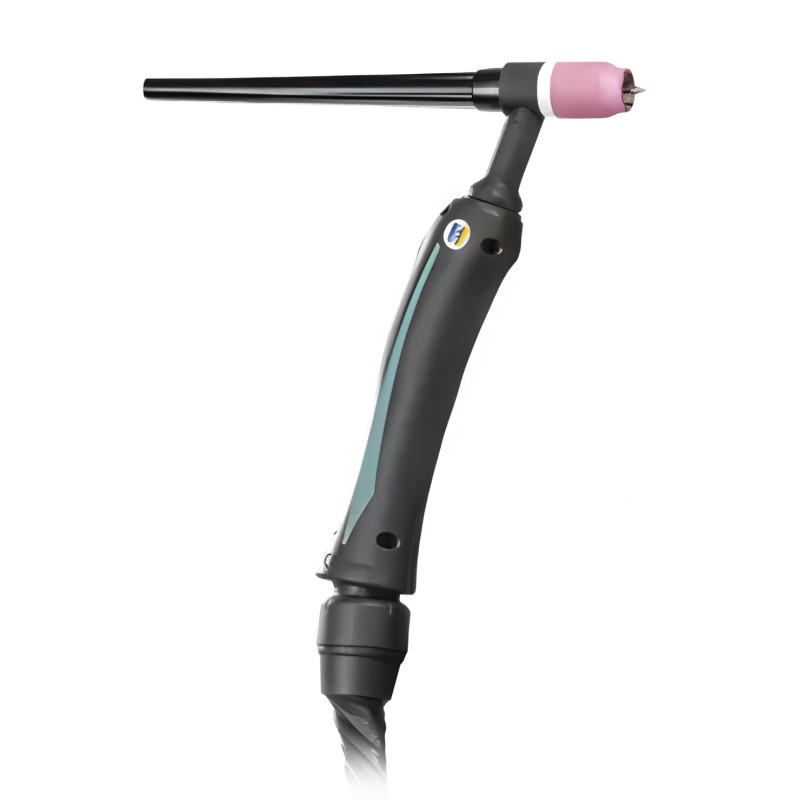

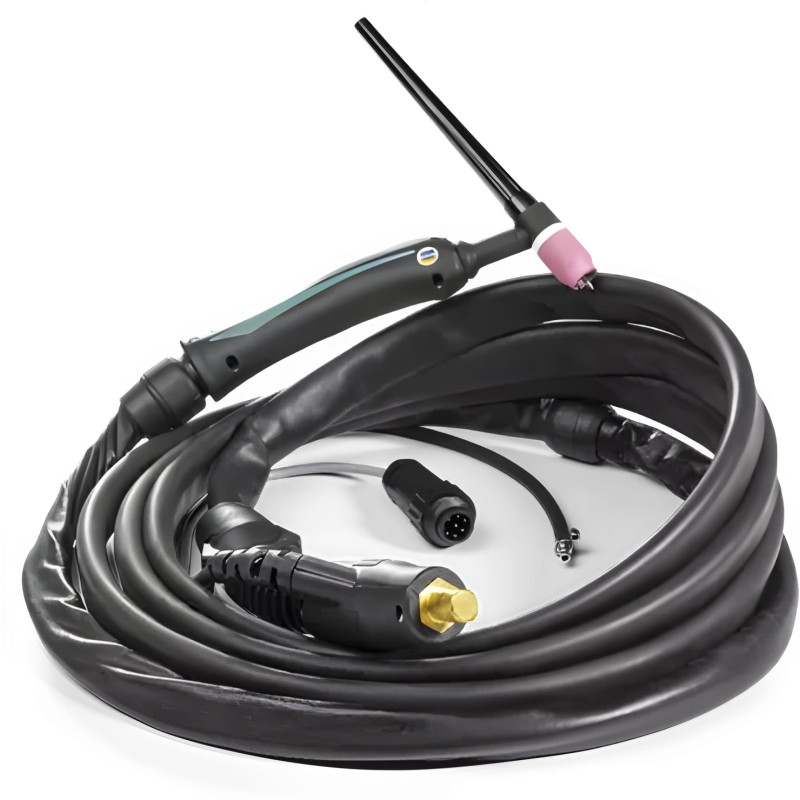

GYS TIG PRO 17 Torch - Air - 8m - 35/50 +AMPH.7
In stock
BINZEL
Reference: SR17DB-AMPH
€200.39
162,92 € tax excl.
or 3 x 66,80 €
Free delivery
2-year warranty
Binzel TIG GRIP SR 17 DB torch (double button), 35/50 connector, Amphenol 7-pin
Length 4 m and 8 m
Air-cooled.
Capacity: - direct current (DC): 140 A - alternating current (AC): 125 A
Duty cycle: 60 %
Usable tungsten electrode: Ø 0.5 to 2.4 mm
In stock
Gys
Reference: 087583
€117.87
95,83 € tax excl.
Fast delivery
2-year warranty
TIG 17 V Torch – Air – 4 m – Connector 10/25 – GYS087583
Length 4 m. Quarter-turn connector 10/25.
Duty cycle at 60%: 140 A DC and 125 A AC.
Usable tungsten electrodes: up to 2.4 mm.
This GYS TIG torch comes with an accessories kit including:
1 nozzle (N7)
1 collet body (Ø2.4)
1 collet (Ø2.4)
1 back cap (long)
1 WR2 AC/DC tungsten electrode (Ø2.4)
Supplier stock
BINZEL
Reference: 317.0220
€296.22
240,83 € tax excl.
or 3 x 98,74 €
Free delivery
2-year warranty
Binzel SRL 17 PREMIUM torch length 8 m
Very compact model.
Capacity:
Duty cycle at 60%: 140 A DC and 125 A AC
For use with tungsten electrodes of 0.5 to 2.4 mm diameter
Supplier stock
BINZEL
Reference: SR20DB
€204.80
166,50 € tax excl.
or 3 x 68,27 €
Free delivery
2-year warranty
Binzel brand TIG GRIP SR 20 DB torch (double button) 35/50 Amphenol 7-pin connector
Length: 4 or 8 m
WATER cooling.
Capacity: - direct current (DC): 220 A - alternating current (AC): 200 A
Duty cycle: 100%
Usable tungsten electrode: Ø 0.5 to 3.2 mm
Duty cycle DC 140 A at 35 %.
AC 125 A at 35 %.
Air cooling
Recommended electrode Ø 1.6> 4.0 mm.
Original single-button module.
Cable assembly length 4 m
Torch weight
4 m (2.7 kg)
Lightweight and easy-to-handle torch
Optional mesh diffuser for uniform gas distribution
Universal connector (Ø 35/50 mm Amphenol)
