Fold-flat welding mask

Automatic Panoramic welding helmet
XL viewing area: 100x80mm + Fixed shade 5
Construction: PP
True Color technology
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 2 replaceable CR2450 batteries
Low battery alarm and test button
Number of sensors: 4
Automatically switches from light to dark shade upon arc striking in 0.08 milliseconds
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/2/1/2
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

Welding helmet suitable for arc welding:

MMA (stick electrode) from 5 to 400 A
MIG-MAG (semi-automatic welding) from 5 to 400 A
TIG from 5 to 300 A

Adjustable shade: DIN 5 to 13; setting 5 to 8 for flame welding and 9 to 13 for arc welding.
Solar powered + 2 CR2450 batteries
Automatically switches from light shade to dark shade upon arc strike in 0.2 ms
Weight: 560 grams.

Viewing field 100 x 67 mm
Number of sensors: 4
Adjustable headband
Grinding position (Grind): the lens remains clear during grinding and cutting work.

Optical classification: 1/1/1/2
Compliant with standards EN 175 / EN 379

Automatic darkening welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable shade control (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter darkens automatically when the welding arc appears and quickly returns to a transparent state when it stops, eliminating the need to raise and lower the mask at each work pause and thus allowing hands-free operation.
In addition to adjusting the filter sensitivity according to the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XXL viewing area, 100 x 93 mm
- 4 sensors,
- dark-to-light delay adjustment,
- battery and solar powered,
- clear glass filter protection.
Optical class 1/1/1/2

This welding mask requires two CR2032 batteries during use (included at the time of sale)

This Optrel VEGAVIEW 2.5 welding helmet features 3 sensitivity sensors with the possibility of angle variation via a slider.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C.
The EN 379 classification of this model is: 1/1/1/2.
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity.
Weight: 482 g.
Temperature resistance: Welding helmet 220° and cover lens up to 137°.
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Supplied with:
1 headband adjustable in width and length.
Storage bag.
2 x CR2032 batteries.
1 spare outer cover lens.
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

This Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for maximum clarity
Weight 600 g
Temperature resistance: Welding helmet 220° and cover lens up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit all head shapes.
Storage bag
Micro USB charging cable
Cover lens
Warranty card.

PAPR connection equipment

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

LCD WELDING MASK

Essential for safety, the GYSMATIC TRUE COLOR XXL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the tinted state in a fraction of a second, from the moment the arc is struck. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 - True Color Technology
Classification: 1/1/1/1
Viewing area: 100 x 83 mm
Reaction time: 0.10 ms
Settings: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 680 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:

Outer lens 114 x 133 mm (reference 043893)
Inner lens 106 x 89.5 mm (reference 046825)

Variable shade adjustable from 8 to 13 depending on your eye sensitivity - Adjustment inside the mask.
Optical class: 1/1/1/1
Viewing area 97 x 60 mm
Grinding mode function DIN 3 - adjustment button on the outside of the helmet
Number of sensors: 4
Dark / light switching time: 0.1-1.0 second - fully adjustable
Weight 560 g
Possibility of adaptable magnifying lens
Minimum trigger amperage: less than 2 A in DC and AC/DC
Headband type: 4-axis pivot
Battery type: 2 x CR2050 + solar cell
True colour rendering device

replacement lenses:

internal: KP2931-1

external: KP2898-1

The Optrel Panoramaxx Quattro welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 350 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-13
Light shade: 3 for grinding work.
Weight: 575 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

The Lincoln Viking 3350 series welding helmets are the premium quality helmets from this manufacturer.

The 4C process gives these helmets the highest protection rating of 1/1/1/1 and a clearer view by minimising the traditional green tint.
A clearer view is a factor in reducing eye fatigue and therefore provides additional comfort for the welder, while also offering increased visibility of the weld pool for higher quality welding.

This welding helmet is available in 3 finishes and comes with a 3-year warranty.

It features 4 sensors, a large 133 x 144 mm screen, an internal shade adjustment from 5 to 13, and a grinding mode.
Supplied with a CR2450 battery and a carrying case.

Possible welding processes / MMA - TIG and pulsed TIG - MIG and pulsed MIG - flux-cored wire as well as gouging and grinding operations.

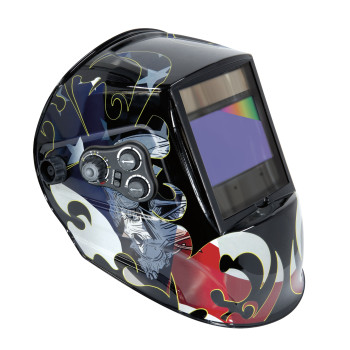

LCD WELDING MASK ERGOTECH DREAM
Essential for safety, the ERGOTECH 5-9/9-13 optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from clear to dark state in a fraction of a second, from the moment the arc is struck. Supplied with a Multifit + headband, it frees the welder's hands and provides all the comfort needed for welding work.
This welding helmet features TRUE COLOR technology

UV/IR protection level: DIN 15
Clear shade: 3
Shade: adjustable from 5-9 and 9-13 13
Classification: 1/1/1/1
Field of view: 100 x 67 mm
Reaction time: 0.08 ms
Number of sensors: 4
Return to clear time 0.15>0.8 sec
Adjustments: sensitivity, shade tester, delay, grinding
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379


Applications
MMA: 5 to 400 A
TIG: 5 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement lenses:
Outer lens 114 x 133 mm (ref. 043893)
Inner lens 103.7 x 69.5 mm (ref. 043695)

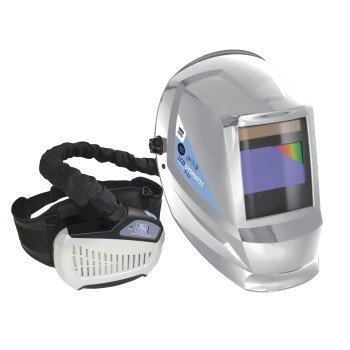

The GYSMATIC 5/13 AIR TRUE COLOR XXL is a welding mask equipped with a powered air-purifying respirator system. 2 in 1, it protects the eyes from IR/UV during welding operations and preserves the operator's respiratory tract.

• The XXL screen provides an optimal field of vision.
• True Color technology guaranteeing incredible color accuracy during welding.
• The 9 available shades (5> 13) adapt to all welding operations. It offers the possibility of TIG welding from 2 A.
• The 4 solar sensors guarantee very high sensitivity and an ultra-fast reaction time (0.08 ms).
• 3 adjustable airflow rates according to need (from 170 l/min to 230 l/min).
• The lithium battery allows up to 8 hours of autonomy.
• The filter rated TH2PRSL retains 99.996% of welding particles.
• Standards EN 166 / EN 175 / EN 379 / EN 12941.
• Supplied with powered air-purifying respirator system, lithium battery, EU charger, harness, flow meter and carry bag.

The Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Light shade: 2 in grinding mode for maximum clarity
Weight: 600 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

S1040 welding helmet

The GYSMATIC 9/13 AIR TRUE COLOR XL is a welding mask equipped with a powered air purifying respiratory protection system. 2 in 1, it protects the eyes from IR/UV during welding operations and preserves the operator's airways.

• The XL lens provides an optimal field of view.
• True Color technology ensuring incredible colour accuracy during welding.
• The 5 available shades (9> 13) adapt to all welding operations. It allows TIG welding from as low as 5 A.
• The 4 solar sensors ensure very high sensitivity and an ultra-fast reaction time (0.08 ms).
• 3 adjustable airflow rates according to needs (from 170 l/min to 230 l/min).
• The lithium battery provides up to 8 hours of battery life.
• The TH2PRSL rated filter retains 99.996% of welding particles.
• Standards EN 166 / EN 175 / EN 379 / EN 12941.
• Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter.

Consumables:
- Pre-filter (ref. 038417)
- TH2 filter (ref. 038424)
- TH3 filter (ref. 065734)

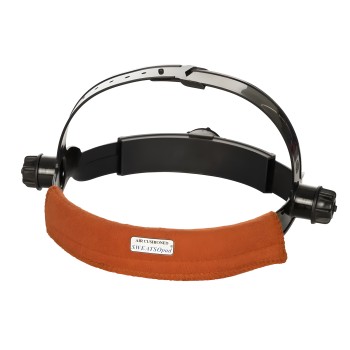

2 sweatbands are available

Front headband (front of the headband) reference 20-3100V 17
Length 17 cm x 2.5 cm wide.

Rear headband reference 203300V
Length 14 cm x 2.5 cm wide

SACTI P850 welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), grinding, and flame welding.

Automatically switches to a dark shade in 1/3,000 of a second.
It features the TRUE-COLOR system for a more true-to-life color vision and reduced eye strain.

Operates with a CR2032 battery (included) + solar cell.

Intensity adjustment via external button.

All Sacit® auto-darkening masks are powered by batteries and integrated solar cells, ensuring reliable operation even in non-uniform or dark environments. The use of batteries also allows for faster darkening compared to masks powered solely by solar cells.

Viewing area: 39 x 96 mm
Filter dimensions: 110 x 90 mm
Adjustable sensitivity. Protection level DIN 4/9:13 during welding operations.
Number of sensors: 2.
Adjustable headband
Optical class: 1/1/1/2
Weight: 485 g

Download the brochure
