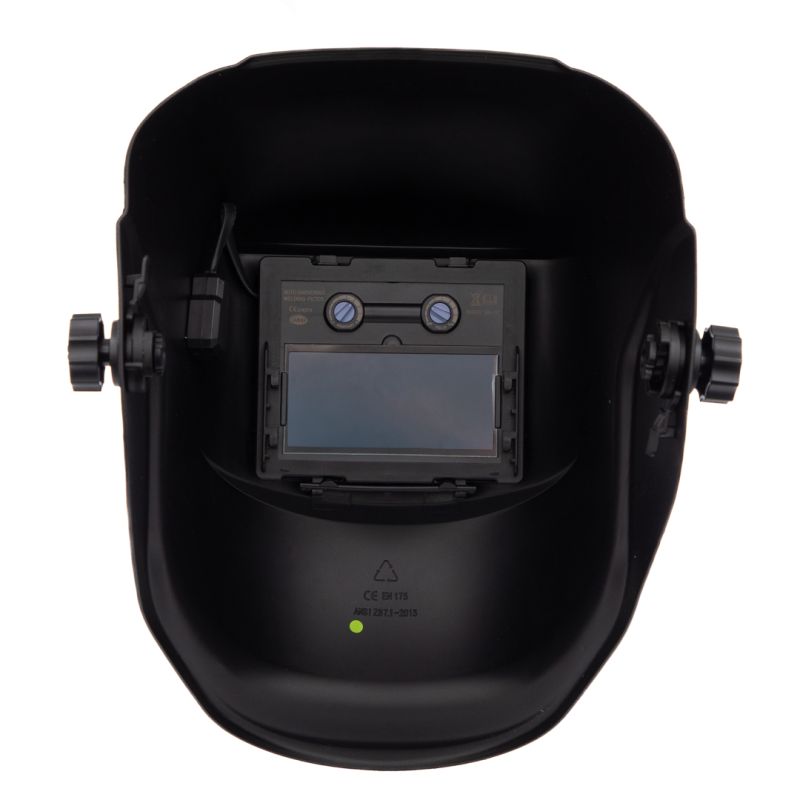

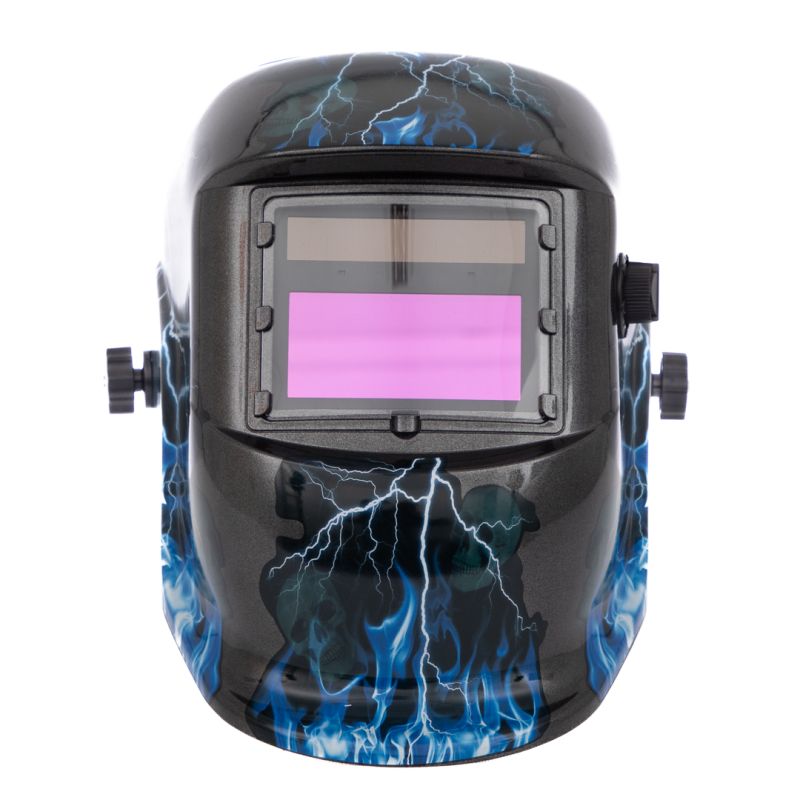

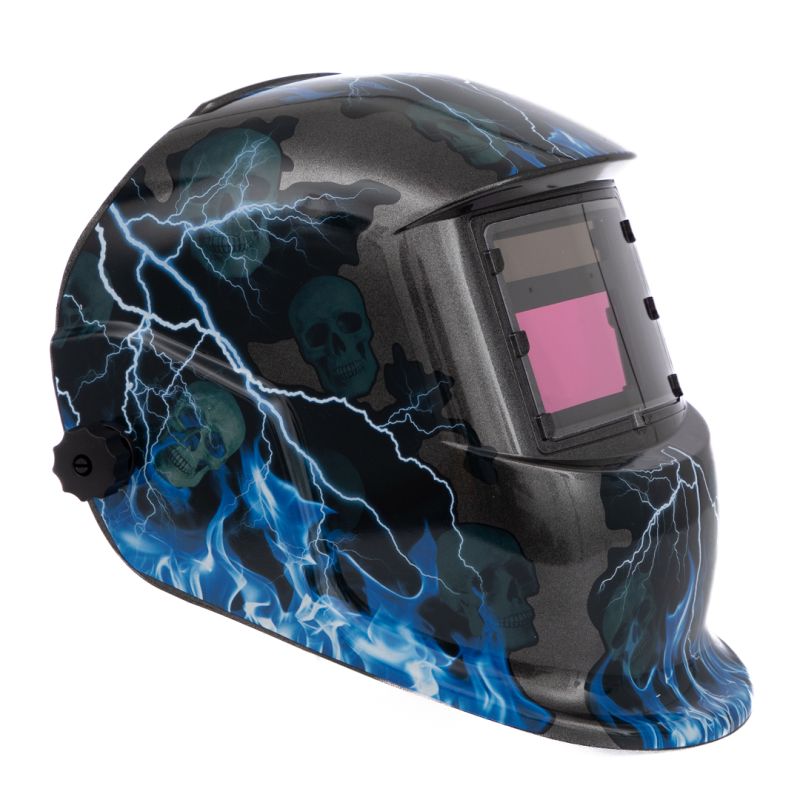

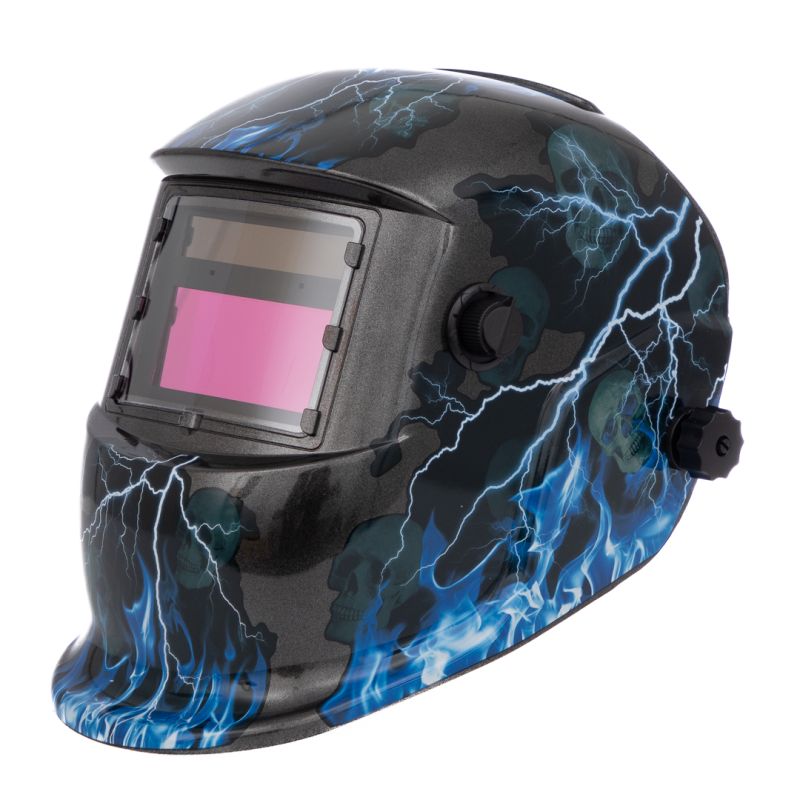

NAIA welding helmet

Essential for safety, the TECHNO 11 TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the shaded state in a fraction of a second, from the moment of arc strike.

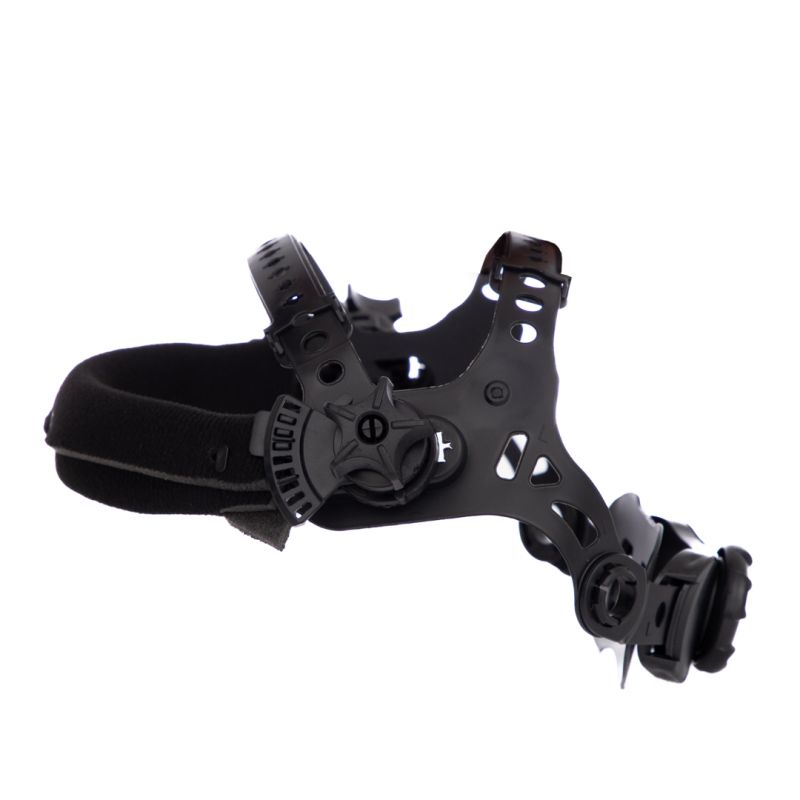

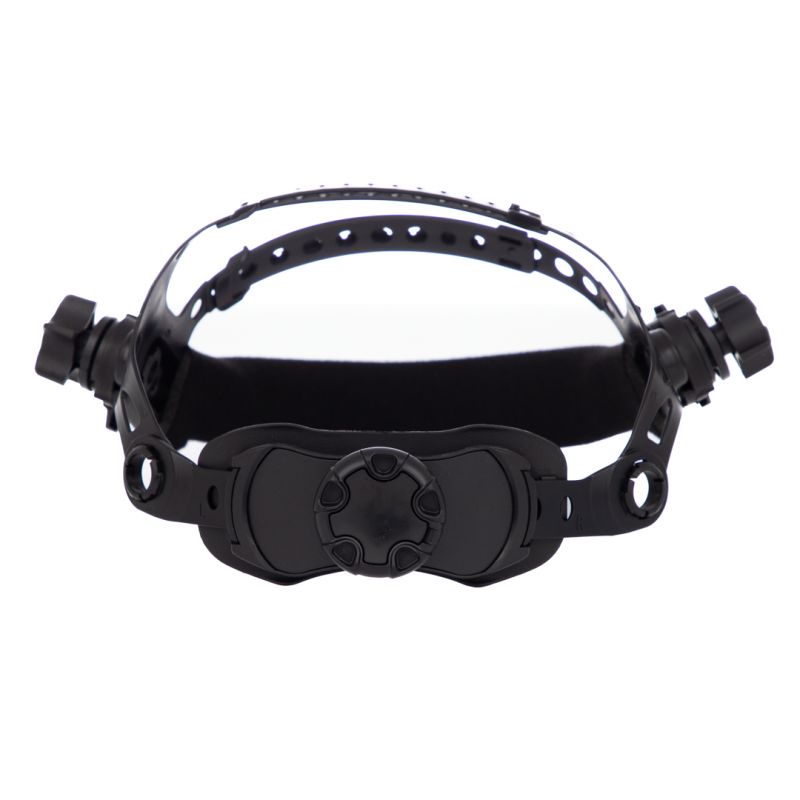

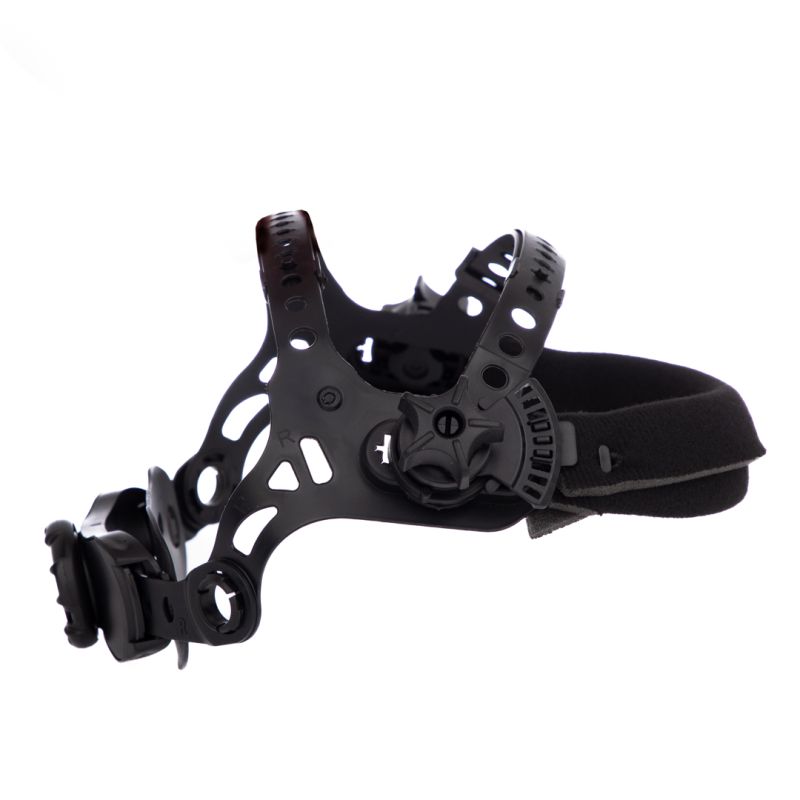

Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.
Welding helmet suitable for arc welding:

MMA (covered electrode) from 10 to 150 A
MIG-MAG (semi-automatic welding) from 10 to 200 A
TIG from 10 to 175 A

Fixed shade: dark shade DIN 11 – light shade DIN 3
Solar powered
Automatically switches from light shade to dark shade upon arc strike. Returns to the clear state as soon as the arc stops.

Viewing area 98 x 35 mm
Adjustable headband
Weight 420 g

Optical classification standard: 1/1/1/1

Compliant with standards EN 175B / EN 166 / EN 379

This Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for maximum clarity
Weight 600 g
Temperature resistance: Welding helmet 220° and cover lens up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit all head shapes.
Storage bag
Micro USB charging cable
Cover lens
Warranty card.

PAPR connection equipment

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

The Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Light shade: 2 in grinding mode for maximum clarity
Weight: 600 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Launch offer at -50% on limited quantities (X50)

Automatic wide-screen welding helmet XL field of view: 100x60mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 1 replaceable CR2450 battery Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

This bag provides protection during transport or when your welding helmet is not in use.

SPACEVIEW 3/5-13G AZUR TRUE COLOR XXL WELDING MASK

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Power supply by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for excellent clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and outer protection screen up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Delivered with:
1 headband adjustable in width and length.
Storage bag
2 batteries CR2032
1 replacement outer protection screen
Warranty card.

2-year warranty with 1 additional year (except for the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic PRO matte black welding helmet True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 9-13 Field of view: 95x44mm Solar power + Lithium battery Low battery alarm Number of sensors: 2 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/2 Grinding mode Weight 430 grams

Automatic darkening welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable shade control (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter darkens automatically when the welding arc appears and quickly returns to a transparent state when it stops, eliminating the need to raise and lower the mask at each work pause and thus allowing hands-free operation.
In addition to adjusting the filter sensitivity according to the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XXL viewing area, 100 x 93 mm
- 4 sensors,
- dark-to-light delay adjustment,
- battery and solar powered,
- clear glass filter protection.
Optical class 1/1/1/2

This welding mask requires two CR2032 batteries during use (included at the time of sale)

The Optrel Panoramaxx Quattro welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 350 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-13
Light shade: 3 for grinding work.
Weight: 575 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

The Savage A50 LUX welding helmet adopts the proven performance of the Sentinel A60 welding helmet to deliver True-Color OpTCS rendering at an impeccable EN 1/1/1/1 optical level.
The optoelectronic cell features a simple and intuitive control panel that allows the most critical functions related to all welding types to be controlled: wide shade selection; 5 delay and sensitivity levels.
To complete the versatility of the Savage A50 LUX, a dual 50-lumen LED light is integrated behind the protective lens. The light is powered by its own "AA" battery for a long service life thanks to the integrated arc sensor, which only turns off the lamp when an arc or intense light is detected.
The 5-point adjustable Halo headband of the Savage A50 LUX is the same as the one on the Sentinel A60.

Advanced LED lighting with dedicated arc sensor and
power supply
Easily accessible LED work light power button and separate external grinding button
Optoelectronic cell viewing area: 100 x 60 mm with internally adjustable push-button controls
Shade range: DIN 3/5 – 13
ESAB True-Color OpTCS visor technology
Arc sensors: 4
Fast switching time of 0.07 milliseconds
Replaceable CR2450 battery
Low battery and grinding mode LED indicators

Welding processes
- Oxyfuel cutting
- Plasma cutting
- Grinding
- Welding, GMAW (MIG/MAG)
- Welding, GTAW (TIG)
- Welding, PAW (Plasma welding)
- Welding, SMAW/MMA (coated electrode)

The delivery includes: a complete helmet, 2 replacement inner lenses, 4 replacement outer protective lenses, a carrying bag and a safety
manual.

This auto-darkening welding helmet features 4 sensors with an integrated grinding screen with anti-fog coating
Operates with 2 CR 2450 lithium batteries. Equipped with a diode indicating the battery level.
Vision area: 75 x 108 mm.
Light/dark switching time: 0.000004 ms
Dark/light switching time: 10 positions from 0.1 to 1 second.
Sensitivity adjustment via digital button: 10 positions.
Adjustable shade from 9 to 13 for welding, from 5 to 8 for cutting.
Suitable for low-amperage TIG welding, microplasma, and oxy-acetylene welding

 Lincoln Electric's exclusive 4C technology liquid crystal display (LCD) increases the spectrum of visible colors. Unlike the traditional auto-darkening filter, 4C® technology broadens the range of visible colors and shades whether the light is diffuse or dark. It eliminates imperfections and color saturation, allowing you to clearly see the material being welded, the arc and the weld pool, while reducing eye fatigue.

3-year warranty.

Optical class 1/1/1/1
Weight 793 g

Supplied with:
5 outer protective lenses
2 inner protective lenses
1 sweatband
1 helmet cover
1 bandana

Essential for safety, the PANORAMIC 3 XL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared, and spatter. Fully automatic, the mask switches from clear to shaded state in a fraction of a second, from the moment the arc is struck. Delivered with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 4 to 12 - True Color Technology
Classification: 1/1/1/1
Viewing area: 131 x 84 mm + 2x (67 x 75 mm) – Panoramic vision
Reaction time: 0.15 ms
Adjustments: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 610 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:
Outer lens 385 x 150 mm (ref. 037311)
Panoramic inner lens (ref. 037304)

The GYSMATIC 9/13 AIR TRUE COLOR XL is a welding mask equipped with a powered air purifying respiratory protection system. 2 in 1, it protects the eyes from IR/UV during welding operations and preserves the operator's airways.

• The XL lens provides an optimal field of view.
• True Color technology ensuring incredible colour accuracy during welding.
• The 5 available shades (9> 13) adapt to all welding operations. It allows TIG welding from as low as 5 A.
• The 4 solar sensors ensure very high sensitivity and an ultra-fast reaction time (0.08 ms).
• 3 adjustable airflow rates according to needs (from 170 l/min to 230 l/min).
• The lithium battery provides up to 8 hours of battery life.
• The TH2PRSL rated filter retains 99.996% of welding particles.
• Standards EN 166 / EN 175 / EN 379 / EN 12941.
• Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter.

Consumables:
- Pre-filter (ref. 038417)
- TH2 filter (ref. 038424)
- TH3 filter (ref. 065734)

The Lincoln Viking 3350 series welding helmets are the premium quality helmets from this manufacturer.

The 4C process gives these helmets the highest protection rating of 1/1/1/1 and a clearer view by minimising the traditional green tint.
A clearer view is a factor in reducing eye fatigue and therefore provides additional comfort for the welder, while also offering increased visibility of the weld pool for higher quality welding.

This welding helmet is available in 3 finishes and comes with a 3-year warranty.

It features 4 sensors, a large 133 x 144 mm screen, an internal shade adjustment from 5 to 13, and a grinding mode.
Supplied with a CR2450 battery and a carrying case.

Possible welding processes / MMA - TIG and pulsed TIG - MIG and pulsed MIG - flux-cored wire as well as gouging and grinding operations.
