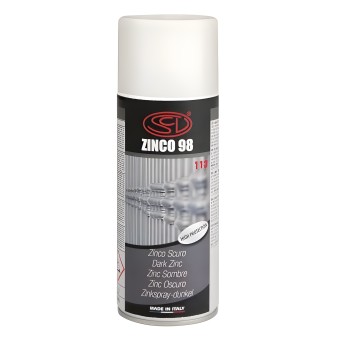

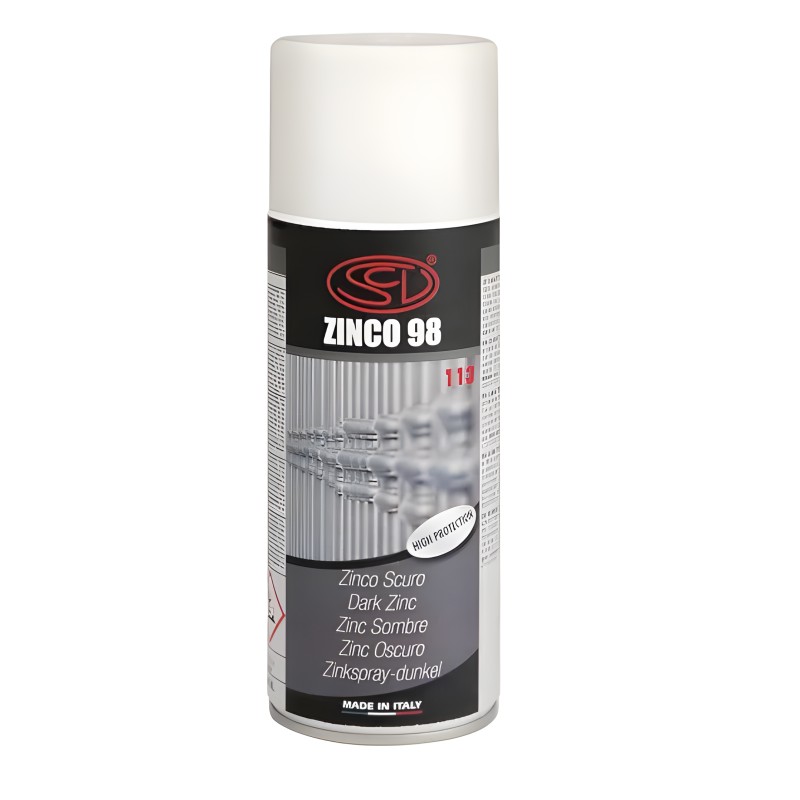

SILICONI |ZINCO 98 Cold galvanising dark grey colour

PENTRIX 100 is a red penetrant liquid in aerosol form, formulated to reveal cracks, crazes or porosity caused by welding on ferrous materials and other metals.
Thanks to its intense colour and composition, PENTRIX can penetrate the most complex areas and reveal cracks and crazes caused by welding.

400 ml aerosol

INSTRUCTIONS FOR USE
Shake well before use.
1. Degrease and clean the surface to be treated with METACLEAN aerosol degreaser;
2. Spray PENTRIX 100 on the parts to be inspected;
3. Wait 10 to 70 minutes for the product to fully penetrate.
4. Clean the treated surfaces with water or solvent. Do not spray solvent aerosol directly onto treated surfaces as this could remove all of the red liquid.

CHARACTERISTICS
Base: Mixture of petroleum distillates, dyes and surface tension protectors.
Appearance: Red liquid
Propellant: Denatured hydrocarbon, non-toxic and odourless
CFC-FREE

Coolant liquid for MIG-MAG or TIG torch cooling system 5L container

This brush is used for applying stainless steel cleaning products.
Plastic handle, acid-resistant.

Two diameters available: 6 and 8 mm

PROTECT 700 is an anti-spatter liquid used to prevent the adhesion of slag or welding spatter.
This product contains no silicone and therefore allows subsequent surface treatments (painting, galvanizing, chromating).
PROTECT 700 can be used in an enclosed space as it is neither flammable nor toxic.
It can be diluted with water in a ratio of 1 to 5; for welding robots, it is recommended to dilute the product with water in a ratio of 1 to 1; for application with a pump, it is possible to use the product pure or diluted 1 to 1.

Base: Synthetic oil, silicone-free.
Appearance: Light yellow
Viscosity at 25°C: 30-100 cSt (Brookfield)
Temperature resistance: from -2°C to +200°C
Biodegradability: over 80%
Dilution: with water in all proportions
pH: 7 to 8
Non-flammable, non-toxic, odorless.

INSTRUCTIONS FOR USE
• Fill a sprayer:
• Spray at 20 cm from the part to be protected
• Deposits a thin, uniform film facilitating the rapid removal of welding spatter
• Remove with a degreaser or cleaner before galvanizing or painting the part(s) that have received SOUDURE ANTI GRATTONS

 It is also possible to apply this anti-spatter product with a brush on the surface to be treated.

Removes oxides after stainless steel welding.

Available in 2 kg and 10 kg jars in paste form

Pickling is the operation that removes all oxides after welding, by eliminating the surface layer depleted as a result of heat treatment.
It is the most important step in the treatment process.
It should be noted that a weld bead is a surface that has been heated and generally loses its stainless properties.
For these reasons, the pickling operation does not only mean cleaning the weld beads but primarily consists of restoring the characteristics of stainless steel.

How to use Picklinox paste?

Degrease the surface to be treated with the specific product CLEANOX.
Then apply a layer of paste.
Rinse with water after a variable period depending on the grade of stainless steel and the type of welding (up to 30 minutes).
Do not expose the product or the treated surface to sunlight or any atmospheric agent.

CERAM STAK is used to protect the torch from welding spatter.
Suitable for MIG/TIG torches, laser and plasma cutting, automatic welding machines.
Lubricant for high-temperature surfaces.

500 ml aerosol can

DESCRIPTION
CERAM STAK is an excellent anti-spatter product for protecting the torch tip from droplet adhesion. It lasts several hours (up to 8 hours) and has a superior anti-adhesive effect compared to standard silicone-free anti-spatter products, because it withstands high temperatures.
CERAM STAK is also an excellent lubricant. It deposits a thin dry film that improves action, prevents friction and reduces deformation. It can be used to lubricate work tables, furnaces, foundry slides, and whenever a high-temperature lubricant is needed.

INSTRUCTIONS FOR USE
Apply to the surface to be treated, which must first be thoroughly cleaned and degreased.
Shake the aerosol for at least one minute. During application, shake the aerosol regularly to keep the product homogeneous.
Spray the product from a distance of 15 cm to deposit a thin film.
After use, shake the aerosol for a few seconds to unblock the valve.
Shelf life is 2 years from the date of manufacture.

SPECIFICATIONS
Base: Microfine ceramic
Propellant: Denatured odourless hydrocarbon
Appearance: White dry film
Temperature resistance: 1500°C – at 200° the resins blend and become a nano-ceramic powder.
Drying time: 5 minutes
Contains no CFCs or silicone.

Silicone-free anti-spatter spray for protection of contact tips and gas nozzles.
Volume 400 ml
For use on cold parts, compatible with paint.

3 products are available for 3 different results after application:

Galva Flash

The durable protection, extreme brilliance.
Protective coating for galvanized steel. Identical appearance to molten zinc straight from a hot-dip galvanizing bath.
Mirror finish for touching up new galvanized parts and welds.
Excellent corrosion resistance (3000 hours salt spray testing). Smooth and flexible film offering good abrasion resistance

Matt Galva

The anti-corrosion shield.
Durable cold galvanizing coating, matt finish. Very high zinc content (99%).
Dual protection: physical and cathodic for touching up and protecting welds.
Excellent corrosion resistance (2500 hours salt spray testing).
Very good adhesion on bare steel or existing paint. Can be overcoated with many varnishes or paints.
Resists without deterioration up to 350°. Good covering power and fast drying.

Gloss Galva

The brilliant protection.
Cold galvanizing coating with gloss finish.
Product designed for touch-ups and protection of welds.
Fine spray providing a magnificent metallic appearance. Dual chemical and mechanical protection.
Very good corrosion resistance (200 hours salt spray testing).
Resists without deterioration up to 350°.
Fast drying, handleable after 15 minutes.

This brush is used for applying stainless steel cleaning products.
Wooden handle, acid-resistant.

Brush width 30 mm
Handle length 30 cm

Final treatment phase to restore the stainless property of steel

Available in 2 and 10 kg pots in gel form

The DETECT FUITES is a water-based product containing an antifreeze additive, anti-corrosion additives and surfactants that give it very high efficiency in immediately locating gas leaks on all circuits. It can be used with all types of gas (compressed air, hydrocarbons, CO2, nitrogen… except pressurised oxygen)
The DETECT FUITES works by forming air bubbles around the gas leak. The DETECT FUITES is frost-resistant and can be used down to -20°C.
The DETECT FUITES is over 80% biodegradable.
Safe to use on pneumatic circuits, fittings, valves, taps, safety valves or cylinders.

MAIN FEATURES
• Immediately visible detection
• Instant bubble or foam formation
• Neutral towards substrates
• Non-flammable
• Over 99% biodegradable
• Leaves no residue
• Contains anti-corrosion agents
• Formulated with an antifreeze agent -20°C
• Do not use on pressurised oxygen — use DETECTO FUITES Ref.: 005511
• Aerosol usable in all positions
FIELDS OF APPLICATION
• Suitable for detecting leaks of:
• Compressed air, CO², Nitrogen
• Butane, Propane
• Gas used in air conditioning systems
• Refrigerant gas
• Leak detection on: • Pipework, • Valves, • Fittings, • Gate valves, • Safety valves, • Gas cylinders

Net capacity 400 ml - 650 ml aerosol can.
Made in France.

The active ingredient of the SOUDURE ANTI-GRATTONS is effective over time and benefits from high anti-adhesion properties that prevent the adhesion of metal spatter and weld spatters on welding torch nozzles or any surfaces near the work area. Formulated without chlorinated or petroleum solvents, the SOUDURE ANTI-GRATTONS is neither toxic nor irritating.

Thanks to its specific water-based formulation, the SOUDURE ANTI-GRATTONS is non-flammable, releases no unpleasant odour and generates neither smoke nor dangerous vapours for the user during welding operations. The SOUDURE ANTI-GRATTONS is 92% biodegradable.

The SOUDURE ANTI-GRATTONS rinses off very easily with water and contains corrosion inhibitors. Silicone-free, it is compatible with post-finishing operations and can be used on surfaces that are to be painted, bonded or varnished.

The SOUDURE ANTI-GRATTONS is particularly recommended when you want to avoid any trace of grease on metal surfaces. It also facilitates the demoulding of parts made of polyurethane, polyester, epoxy, various plastics or rubber moulded by injection, compression or casting.

SOUDURE ANTI GRATTONS Silicone-free water-based anti-adhesion spray

MAIN CHARACTERISTICS
• Water-based formula without chlorinated or petroleum solvents
• Prevents the adhesion of molten metal spatter: welding spatter.
• Non-flammable
• Easy removal of welding spatter by simple brushing
• Transparent film in the form of micro-droplets
• Long-lasting protection
• Releases no vapour or smoke
• No unpleasant odour • Mould release action
• Contains a corrosion inhibitor
• Very easy removal of the SOUDURE ANTI GRATTONS film
• Silicone-free to facilitate post-finishing operations

FIELDS OF APPLICATION
• Protection of the welding station environment
• Protection of parts before welding
• Nozzle, soldering iron tip
• Welding robots
• Steel or aluminium moulds • Mould release agent for plastic injection moulding

Marking kit for Cleantech 200 Telwin

ZINCONSIL 430 is used for cold galvanising on all metals. An aerosol with a high zinc content used particularly for touch-ups on welds, to restore or galvanise metal parts, to galvanise and protect bolts exposed to weathering for long periods, to restore grilles, gates, metal parts, containers and metal structures.
ZINCOSIL 430 is also an effective protector against corrosion from atmospheric agents, salt and moisture.

400 ml aerosol

PROPERTIES:
- Contains no chlorinated solvents,
- High zinc content,
- Fast drying,
- Does not drip,
- High coverage power,
- High corrosion resistance,
- Good resistance to atmospheric agents, washing agents, oxidising agents.
- Colour identical to galvanising,
- Durable protection
- The aerosol is fitted with an anti-drip diffuser; its use does not cause stains.

INSTRUCTIONS FOR USE
Shake before use for one minute until the ball inside moves freely.
Even during application, shake the product regularly to keep it homogeneous. Clean and degrease the surfaces to be treated. Spray from a distance of approximately 25 cm.
After use, invert the aerosol and spray the product for a few seconds to prevent the valve from becoming blocked.

SPECIFICATIONS
Base: Pure zinc 98% on synthetic backing
Pigment purity:>98%
Propellant: Denatured and odourless hydrocarbon
Appearance: Light grey colour
Dry film thickness: 20 to 40 µm (cross-coat)
Coverage capacity: high
Coverage rate: approx. 120 ml/m²
Temperature resistance: -50°C to +250°C (Metal powder resists up to 700°C)
Drying time: 5 to 10 minutes. Fast drying, does not drip.
Electrical conductivity: high
Abrasion resistance: Very high
Cross-cut: DIN 53151 - ISO 2409 = GTO/GT1
Oxidation resistance: Very good corrosion resistance

SUPER CLEANER is a fast and powerful cleaner for removing: oils, greases, stains, dirt, and sludge. It is suitable for cleaning engines, gears, chains, hard surfaces, chrome parts, plastics, steel, bicycles, aluminium painted parts, chains, and gearboxes. It does not damage rubber, plastic, or carbon frames. Free from petroleum solvents. It contains additives that leave a shiny, protective film on treated surfaces. It does not corrode or scratch treated materials. BIODEGRADABLE.

Thanks to its formula, it can penetrate and dissolve all types of dirt or encrustation.

750 ml spray bottle

It cleans without leaving greasy residues.

Suitable for cleaning: industrial machines, workbenches, engines, chrome frames, chains, chrome parts, external engine parts, nozzles, mechanical movements, plates, iron parts, copper, engine parts, car rims.

SUPER CLEANER reduces the adhesion of dirt on treated surfaces.

✓ Non-flammable
✓ Non-toxic
✓ Ammonia-free
✓ Non-abrasive

INSTRUCTIONS FOR USE
Wet the parts to be cleaned with water, then apply SUPER CLEANER onto them.
Wait a few minutes for the product to act and dissolve the dirt.
Then remove the dirt with a cloth.
Repeat the operation if the dirt is difficult to remove.
It can also be diluted with water to clean delicate surfaces or fabrics.

CHARACTERISTICS
Base: Mixture of detergents and degreasers
Appearance: Transparent amber liquid
Odour: Fragranced
pH: Alkaline
Viscosity: Fluid
Biodegradability: Over 80%

Cleaning pad kit for Cleantech 200 Telwin
This item is used when cleaning with the CLEAN IT cleaner
These pads are suitable for cleaning large weld beads
