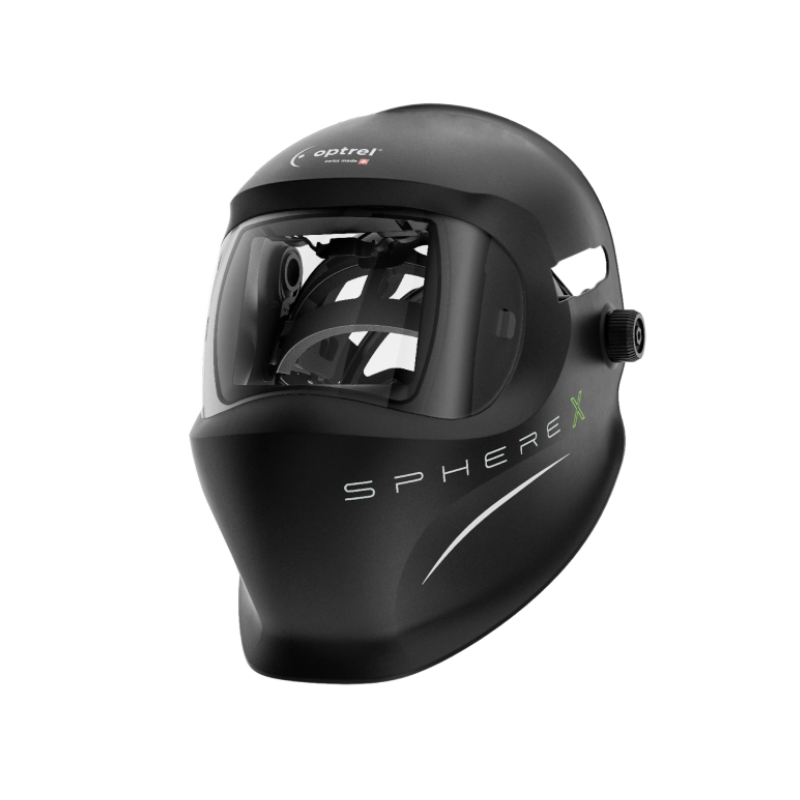

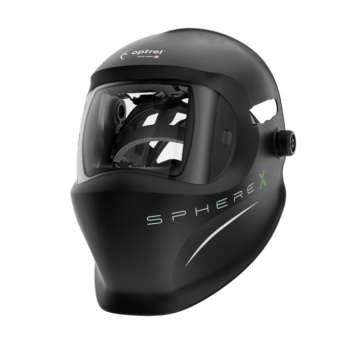

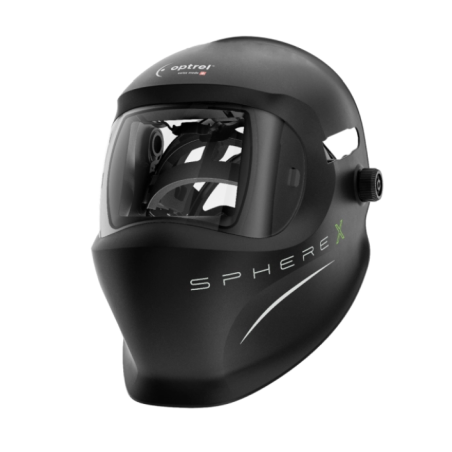

sphereX shell - black: without optoelectronic filter

Black SphereX fresh air welding helmet shell (without anti-glare cassette)

Essential for safety, the PANORAMIC 3 XL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared, and spatter. Fully automatic, the mask switches from clear to shaded state in a fraction of a second, from the moment the arc is struck. Delivered with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 4 to 12 - True Color Technology
Classification: 1/1/1/1
Viewing area: 131 x 84 mm + 2x (67 x 75 mm) – Panoramic vision
Reaction time: 0.15 ms
Adjustments: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 610 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:
Outer lens 385 x 150 mm (ref. 037311)
Panoramic inner lens (ref. 037304)

LCD WELDING MASK

Essential for safety, the GYSMATIC TRUE COLOR XXL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the tinted state in a fraction of a second, from the moment the arc is struck. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 - True Color Technology
Classification: 1/1/1/1
Viewing area: 100 x 83 mm
Reaction time: 0.10 ms
Settings: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 680 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:

Outer lens 114 x 133 mm (reference 043893)
Inner lens 106 x 89.5 mm (reference 046825)

This Optrel Helix Quattro welding helmet with flip-up lens is suitable for welding in demanding conditions
Amperage adjustment range: up to 500 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-14
Clear shade: 3 for grinding work.
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headband, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Essential for safety, the ALIEN XXL+ TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the darkened state in a fraction of a second, right from arc ignition. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 – True Color technology
Classification: 1/1/1/1
Viewing area: 100 x 90 mm
Reaction time: 0.08 ms
Adjustments: sensitivity, shade, delay
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement protective lenses:
Outer lens 114 x 133 mm ref. 043893
Inner lens 104 x 96 mm ref. 043596

Automatic welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable darkening (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens when the welding arc appears and quickly returns to its transparent state when it stops, eliminating the need to lift and lower the mask at each work break, allowing hands-free operation.
In addition to adjusting the filter sensitivity depending on the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XL viewing area 100 x 67 mm
- 4 sensors
- dark-to-light delay adjustment,
- battery and solar powered,
- transparent glass filter protection.
Optical class 1/1/1/2

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 8-12.
Clear shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Delivered with:
1 hard hat adapter
1 headband adjustable in width and length.
Storage bag
2 CR2032 batteries
1 spare outer cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic PRO matte black welding helmet True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 9-13 Field of view: 95x44mm Solar power + Lithium battery Low battery alarm Number of sensors: 2 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/2 Grinding mode Weight 430 grams

Extended field of view +30%
Realistic color vision
Color: matte black
Light shade: 3.0
Auto shades 5-13
Manual shades: 5-9, 9-13
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Power supply: Solar panels + 2 CR2032 batteries (replaceable).
Weight: 640g
Compatible with Swiss Air respiratory pack

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

Not compatible with laser welding.

- Fadetronic for smooth opening of the anti-glare screen after welding, for fatigue-free work

- Suitable for grinding work

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Power supply: 2 x 3V batteries CR2032.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
EN 379 classification of this model: 1/1/1/2
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Included:
1 headband adjustable in width and length.
Storage bag
2 batteries CR2032
1 Replacement outer protective cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on the website www.optrel.com.

High-performance automatic welding helmet. Sentinel A60 was designed with enhanced vision in mind.
Viewing area 40% larger than A50 (118 x 71 mm) for a wider view of your work.
Its new ADF offers excellent 1/1/1/1 EN optics from all angles
Ultra-clear True-Color lenses to reduce eye fatigue
Shade range from 3/5 to 13 adjustable in half-unit digital increments to optimise vision
4 overactive arc detection sensors for automatic brightness recognition in any work environment
Bright two-colour LED display for easy viewing in low-light conditions
New graphics to adjust sensitivity and delay time
Buttons carefully spaced apart from each other, easy to use even with gloves
ADF with nine programmable memory slots to save and quickly access welding profiles
Esab Sentinel A60 features an external grinding mode button for easy activation
New shade lock function to bypass the ADF and keep the helmet in its darkest state.
2 replaceable CR2450 lithium batteries with solar support
Internal warning indicators for grinding mode, low battery and ADF bypass lock
The signature flip-front design of the Sentinel A60 with infinite adjustment distributes weight
around the head.
Switching time (light to dark): 0.04 ms; switching time (dark to light): 0.1–0.9 s, adjustable

Approvals: CE: EN175, EN379, EN166; ANSI Z87.1; CSA Z94.3; AS/NZS 1337.1, 1338.1; TP TC 019/2011; ISO 16321-1/2

3-year warranty (battery excluded)

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRY BAG.

Optrel automatic welding helmet, black color
Light shade 2.5
Auto shades 5-12
Manual shades: 8-12, 4-8
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Weight: 640g

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

Not compatible with laser welding.

Launch offer at -50% on limited quantities (X50)

Automatic welding helmet EXTRA large screen
XXL viewing area: 100x97mm
External controls
Construction: PP
True Color technology: more realistic color rendering
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 1 replaceable CR2450 battery
Low battery alarm and test button
High sensitivity: 4 sensors
Fast darkening speed: 0.08 ms
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/1/1/1
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

Automatic welding helmet
Fixed light shade: DIN 4
Variable dark shade: DIN 9-13
Viewing field: 930x430 mm
Solar power + Lithium battery (CR2032)
Grinding function
Adjustable headband
Automatically switches from light to dark shade upon arc strike: under 1/10,000 seconds
Return to light state adjustable from 0.15S-0.8S
Dimensions: 57x50x52 cm
Weight: 430 grams

Optical classification standard:
Compliant with standards EN 175B / EN 166 / EN 379

The Optrel Panoramaxx Quattro welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 350 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-13
Light shade: 3 for grinding work.
Weight: 575 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

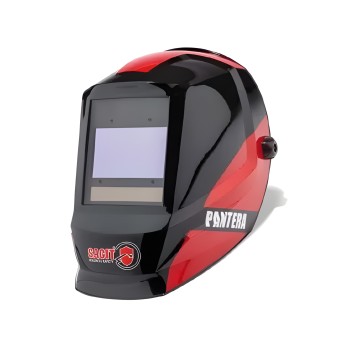

SACIT PANTERA welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), TIG welding>6 A, flame welding and grinding work.
The Pantera mask is particularly ideal for low-amperage TIG welding (GTAW) and is able to guarantee maximum performance even in the most extreme welding situations.
Large throat and neck protection

Automatically switches to a dark shade in 1/0.08000 of a second.

Sensitivity and intensity adjustment using the buttons located inside the helmet.

Also suitable for eye protection during grinding operations thanks to the "Grinding" position.

Adjustable sensitivity. Protection level DIN 9-13 for MMA-MIG/MAG/TIG welding operations.
Suitable for flame welding thanks to its dual adjustment range DIN 5-8

This helmet features the TRUE COLOR system for more accurate color reproduction, reducing eye fatigue for the welder, as well as the Stand-by/Sleep-Mode system: the filter switches off when brightness is below 1 uA and activates when light intensity exceeds 10 lux.

Operates with a CR2450 battery (included) + solar battery.

Viewing area 100 x 60 mm
Filter dimension: 114 x 133 mm
Optical class 1/1/1/1
Adjustment ranges 4/ 9:13
Number of sensors: 4
Adjustable headband
Weight 590 g
2-year warranty.
