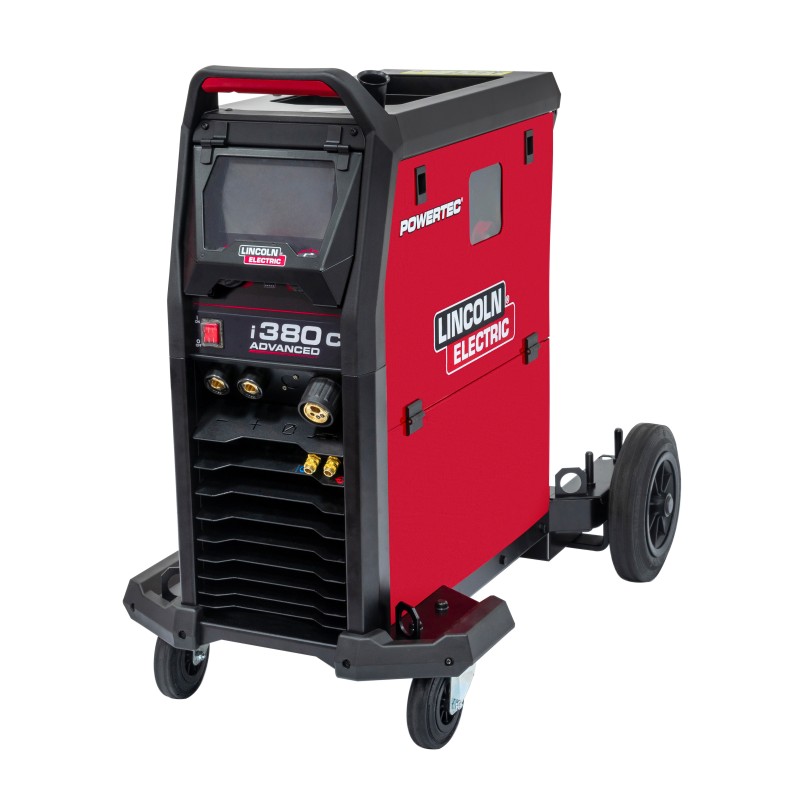

Lincoln Powertec I 380 C ADVANCED welder without torch

This tri-technology unit allows you, with a single machine, to weld in MMA, semi-automatic (MIG-MAG) and TIG modes.

MMA (electrode) and TIG welding solutions are available as options.

As standard, this semi-automatic unit features 17 programmed settings. The user simply needs to select the type of metal and the wire diameter. It is also possible to weld in manual mode by directly adjusting the settings parameters.

This welding unit uses wire on a spool. This welding process allows welding of thin materials (0.6 mm).

Very practical on thin sheets (automotive bodywork, chassis...), it avoids the weld bead restart that occurs when changing an electrode.

With the addition of a shielding gas, this unit enables welding on aluminium, stainless steel and steels in MIG-MAG and MMA mode, and steel, stainless steel and ferrous alloys in TIG mode.

Using a suitable wire of the CU Si3 type, it enables welding of HSS, EHS, UHS steels (automotive bodywork)

MIG welding with gas shielding requires the use of pure Argon gas for aluminium welding or an Argon + CO² mixture for steels and stainless steels.

Special case: For steel, it is possible to weld without gas when using flux-cored wire (which allows, for example, easier outdoor use). In this case, the thickness of the steel sheets must not be less than 1 mm to avoid the risk of burn-through.

This unit uses Ø 200 mm and 300 mm wire spools (flux-cored wire in 2 kg and other wires in 5 and 15 kg). An adapter for Ø 100 mm spools is available as an option.

Upon delivery, this unit includes:
1 Mig 180 A torch (3 metres)
1 earth clamp + 1.9 m cable.
1 roller for steel/stainless steel wire Ø 0.6 and 0.8 mm.
1 steel/stainless steel contact tip Ø 0.8 mm
1 gas hose for refillable cylinder

TIG welding with gas shielding requires the use of pure Argon gas for welding steels, stainless steels, ferrous alloys and copper...

As an option:

It is possible to add an electrode holder with a 3 m cable in order to weld with electrodes from Ø 1.6 mm to 4 mm.

Reference KIT000514

It is possible to add a TIG torch 4 m in length in order to weld in TIG mode using pure Argon shielding gas.

For connecting the unit to gas, it is recommended to use the 804208 fitting.

Welds steel, stainless steel and aluminium from 0.6 to 6mm in all positions
MIG duty cycle: 130A at 60% / 110A at 100%
MMA duty cycle: 110A at 60% / 90A at 100%
TIG duty cycle: 135A at 60% / 115A at 100%
Current range: 20 to 200A - Voltage: 76V
Combines 4 welding processes in 1 unit:
- MIG/MAG with gas (steel/stainless wire Ø 0.6/0.8 to 1.6 mm and Alu 0.8 to 1.6mm)
- MIG/MAG gasless (flux-cored wire Ø 0.9 to 1.2 mm)
- TIG Lift DC current - Lift Arc TIG starting
- MMA (basic and rutile electrodes up to 5 mm)
2 drive rolls for spool Ø 100 mm (1 kg) or Ø 200 mm (5kg)
Removable MAG torch 250A (2T/4T) 3m (8mm contact tip)
Digital interface and very intuitive adjustment
Compatible with 9 kVA generator
Single-phase 230 V - 16 A power supply
Dimensions: 25 x 45 x 35 cm - 16kg
IP21 rating

Supplied with:
1 x 250 A steel torch 3m MB25
1 x 200 A earth clamp 2.5m
1 x MMA electrode holder 2m
1x 0.8/1 mm drive rolls

TIG torch optional

Welds steel, stainless steel and aluminium for occasional use
MIG duty cycle: 160A@ 20%-40°C
MMA duty cycle: 140A@ 20%-40°C
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (solid wire Ø 0.6 to 0.8 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 mm)
- MMA (electrode Ø 1.6 to 2.5 mm) with Anti-sticking function
2-roller wire feeder for Ø 100 mm (1 kg) or Ø 200 mm (5 kg) spool
Removable 150A MAG torch 2.20 m
Digital interface and very intuitive adjustment
Compatible with 8kVA generator
Single-phase power supply 230 V - 16 A
Dimensions: 40 x 20 x 33 cm - 10 kg

Supplied with:
- 1 earth clamp + 16 mm² cable length 1.6 m
- 1 MIG/MAG torch length 2.20 m fitted with a contact tip for steel wire Ø 0.8 mm
- 1 reversible roller for solid wire Ø 0.8 and gasless 0.9 mm
- 1 electrode holder + 16 mm² cable length 1.6 m
- 1 no-gas nozzle + 1 contact tip for flux-cored wire Ø 0.9 mm
- 1 gas hose for refillable cylinder length 1 m
- 1 wrench to loosen contact tips

Adaptive tool for the mobile welder
Excellent welding quality and precise arc ignition
High duty cycle: 190A@ 35% - 140A@60% - 100A @ 100%
Uses Ø 100 mm (1 kg) or Ø 200 mm (5 kg) spools
Generator compatible
3-metre torch
Lightweight and portable
LCD control panel
IP23 rating for outdoor use
Dimensions: 450x227x368mm - Weight 14.2kg
2-year warranty

Supplied with:

1 torch, length 3 m with ergonomic handle, fitted with a contact tip for steel or stainless steel wire Ø 0.8 mm
1 reversible roller for stainless steel or steel wire Ø 0.8/1 mm
1 ground clamp + cable section 16 mm², length 2.50 m
1 gas hose, length 5 m


The Lincoln POWERTEC® i units are new compact inverter-type generators for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

Two models are presented:

Powertec i250A standard (STD) Manual adjustment of welding parameters
Manual adjustment of voltage and wire feed speed
Quick button for selection of welding process and shielding gas
Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

Powertec i250 synergic (ADV)
Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding faults...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' colour screen
USB connectivity: Software updates and diagnostics made easier with built-in monitoring functions.

These units feature:
INNOVATIVE INTUITIVE INTERFACE
Easy navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and the thickness to weld V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready for use with the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier with built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC START Instant and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during changes in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new tolerated limits.

Supplied with

Ground clamp and cable length 3 m.
Gas hose length 2 m
Reversible roller for steel/stainless wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

Portable welding machine with electric transformer
Ideal for maintenance work
Designed for assembly, repair of sheet metal or profiles in steel and stainless steel
Duty cycle: 90A@20% - 40°C
Current range: 40 to 140A
Combines 2 processes:
- MIG/MAG for workshop welding wire Ø 0.6 – 0.8 mm
- NO GAS for outdoor welding flux-cored wire Ø 0.9 mm
2-roller wire feeder for spool Ø100 mm (1 kg) and Ø200 (5kg)
Fixed torch 150A 2.2m (0.8mm contact tip)
Single-phase power supply 230 V - 16 A
Dimensions: 24 x 42 x 38 cm - 22.6kg

Delivered with:
- 1 earth clamp (cable 1.6 m /16 mm2)

The ESAB Rogue EMP 180 is a multi-process welding machine with INVERTER technology, designed to meet all your welding project needs, from light fabrication to repair and maintenance.
The system delivers industrial-grade arc performance and comprehensive controls that allow the welder to fine-tune arc characteristics according to the material being welded.
Weighing only 16.2 kg, with a 230 V single-phase power supply and compatibility with 10 kVA generators, this system offers maximum flexibility and portability, both in the workshop and in the field.

Its features

Large 14-segment display – instant readout of voltage and wire feed speed for clear visibility
- Synergic welding programs: easy adjustment of welding parameters for welds on material thicknesses from 0.5 to 8.0 mm
- Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even when working with extension cables up to 100 m
- Unique robust industrial design with multiple lifting points and optimised cable management
- Arc Dynamics: Allows precise adjustment of arc characteristics to achieve a hard arc for carbon steel or a soft arc for stainless steel.
- Provision for torch with integrated spool; Rogue automatically configures when the torch is connected.
- IP23S protection rating for ideal use on job sites.

The Esab Rogue EM 180 comes with:

- 1 power cable 3 metres with Schuko 16 A plug,

- 1 MIG torch MXL 201 Euro 3 m,

- 1 earth cable kit 16 mm², 3 m,

- 1 gas hose with quick connector 4.5 m,

- 1 ESAB OK AristoRod mild steel/iron welding wire spool 12.50 0.8 mm 1 kg,

- 1 drive rollers 0.6/0.8 mm V (fitted), 0.8/1.0 mm V and 0.8/0.9 mm VK x flux-cored wire,

- safety instructions.

Welds steel, stainless steel and aluminium from 0.6 to 6mm in all positions
MIG duty cycle: 150A at 60% / 130A at 100%
MMA duty cycle: 150A at 60% / 130A at 100%
TIG duty cycle: 150A at 60% / 130A at 100%
Current range: 20 to 250A - Voltage: 76V
Combines 4 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless steel wire Ø 0.6 to 1.2 mm and aluminium Ø 0.9 to 1.2 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- TIG Lift DC current - Lift TIG ignition
- MMA (basic and rutile electrode up to 5 mm)
4 rollers for Ø 200 mm (5 kg) or Ø 300 mm (15 kg) spools
Removable EURO 250A 3m STEEL MIG torch (1.2 mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 9 kVA generator and 100m extension lead
Cylinder support included
Single-phase 230 V - 16 A power supply
Dimensions: 75 x 45 x 80 cm - 45 kg
IP23S rating for outdoor use

Supplied with:
1 x 250 A 3m MB25 torch
1 x 3m earth clamp
2x 0.8-1.0 rollers

KEMPPI - MINAR MIG M 223 pulse with 3M torch and European connector.

SEMI-AUTOMATIC WELDING MACHINE (MIG/MAG)
Ideal for maintenance and automotive body repair work.
Adjustment range from 15 to 160A
For wire diameter 0.6 to 1mm: steel, stainless steel and aluminium
Simple and fast adjustment: in synergic mode, the machine automatically sets the ideal wire speed.
Expandable, it can be fitted with a spool gun torch

3 available modes:
Standard (2T).
- Spot, plug welding function.
- Delay, stitch point function.

Delivered with:

1 150A torch length 3 m, fitted with a Ø 0.8 mm contact tip.
1 200 A earth clamp cable length 3 m
1 reversible roller for steel wire Ø 0.6/0.8 mm.

The Lincoln POWERTEC® i units are new compact inverter-type welding machines designed for MIG-MAG & MMA welding. They are available in two power outputs (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model shown below is the Powertec 250A standard display.

Manual adjustment of voltage and wire feed speed
Quick button for selection of welding process and shielding gas

Quick access to the most frequently used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and the thickness to be welded V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready for use thanks to the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rolls: smooth and consistent wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instant and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Supplied with
Earth clamp and cable length 3 m.
Gas hose length 2 m
Reversible drive roll for steel/stainless wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

The ESAB Rogue EMP 210 PRO is a multi-process INVERTER technology welding machine designed to meet all your welding project needs, from light fabrication to repair and maintenance.
The system offers industrial-level arc performance and comprehensive controls that allow the welder to fine-tune arc characteristics to suit the material being welded.
Weighing only 16.7 kg, with a 230 V single-phase power supply and compatibility with 10 kVA generators, this system offers maximum flexibility and portability, both in the workshop and in the field.
True multi-process unit with Synergic MIG, Manual MIG, MIG brazing, flux-cored, Lift TIG and MMA (including 6010) processes
The 5.0" TFT screen is intuitive and clear, allowing the welder easy adjustment and a quick learning curve.
Synergic welding programs: complete range of welding parameters, 0.5 to 10.0 mm with a single control knob
Power Factor Correction (PFC): ensures a stable arc, resistant to mains voltage fluctuations, even when working with long extension cords up to 100 m
Unique robust industrial design: multiple handles for easy handling and cable management
Arc dynamics: precise adjustment of arc characteristics for a crisp / stable arc for carbon steel or a fluid / soft arc for stainless steel
Jobs: ability to save / recall up to 10 operations
Compliant with IP23S standard for indoor / outdoor use

Applications
Automotive construction
Automotive bodywork
Agricultural equipment
Civil engineering
Mechanical contractors
Repair and maintenance
Light fabrication

Package contents:
1 Multi-process welding machine 210 A with 3 m power cable and 16 A plug
1 MIG torch MXL 201, 3 m with Euro connector, with 1 contact tip for steel or stainless steel wire Ø 0.8 mm
1 Ground clamp with 3 m cable, OKC 35-50 16 mm2.
1 Electrode holder, Handy 200 A, heavy-duty 50 mm OKC, with 3 m cable.
1 Gas hose 4.5 m with quick connector.
1 Ø 200 mm spool of ESAB OK AristoRod steel wire 0.8 mm, weight 1 kg
1 Feed roller 0.6 / 0.8 mm (fitted on the machine) + 1 roller 0.8 / 1 mm for steel or stainless steel wire.
1 roller 0.8 / 0.9 mm for flux-cored wire
1 roller 1 / 1.2 mm for aluminum wire
1 nozzle for flux-cored wire (gasless) + 1 contact tip Ø 0.8 mm and 1 contact tip Ø 0.9 mm
1 user manual and safety instructions.

MIG Welding - GASLESS -
Welds steel flux-cored wire Ø 0.8 mm
1kg spool - Spool diameter 100mm
LCD screen for very intuitive adjustment
Open circuit voltage: 56V
Power: 30-120A - 4 kVA
Featherweight (5kg)
Single-phase 230 V - 16 A power supply
Compact size and carrying handle
Dimensions: 40x16x27cm

2-year warranty
Delivered with ground clamp, MIG/MAG torch, electrode holder and accessories kit

Compact three-phase generator for workshop and job sites
Welds steel, stainless steel and aluminium
MIG duty cycle: 170A at 60% / 130A at 100%
MMA duty cycle: 150A at 60% / 120A at 100%
Amperage range: 40 to 250A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless wire Ø 0.6 to 1.2mm and Alu 0.9 to 1.2mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 5 mm) with Anti-stick function
4-roll wire feeder for Ø 200 mm (5 kg) or Ø 300 mm (15kg) spool
Removable 250A 3m MAG torch with 2T/4T function
Digital interface and very intuitive adjustment
Compatible with 10kva generator
Three-phase power supply 400 V - 16 A
Dimensions: 58 x 52x 32 cm - 32kg
IP23 rating for outdoor use

Delivered with:
1 x 250 A 3m MB25 torch
1 x 4m ground clamp
1x User manual
2x rollers 0.8/1.0

MIG Welding - WITH AND WITHOUT GAS -
Welds wire Ø 0.8 and 1mm
4 processes: MIG-MAG with and without gas, MMA and TIG Lift
Uses 1kg (Ø100mm) and 5kg (Ø200mm) spools
Synergy function
LCD screen for very intuitive adjustment
Open circuit voltage: 62V
Power: 50-160A - 6 kVA
Weight: (9kg)
Single-phase 230 V - 16 A power supply
Compact size and carrying handle
Dimensions: 49x22x37cm
2-year warranty

Delivered with:
1 Electrode holder + 16 mm² cable 3 meters long + 1 Ground clamp + 16 mm² cable 3 meters long
MIG torch 2 meters long, 0.8 and 1.00mm roller
1.5-meter power cable

This is the very latest generation of welding unit manufactured by Lincoln, designed to replace transformer-based units which will be banned from production from 31 December 2022 as they are too energy-intensive.

This is a unit allowing welding by:
- Mig-MAG
- Flux-cored wire with and without gas
- Coated electrodes

Synergic unit (easy to use) with 24 built-in programs

Products in this QUICKMIG range are easy to use and set up.
They enable welding of light structures and small dimensions such as small agricultural equipment.
The range includes generators delivering 250A and 300A, equipped with large LED screens and a user-friendly interface.
As standard, the QUICKMIG offers an efficient 4-roll wire feed system regardless of material type, a connector suitable for a MIG torch, wheels and a gas cylinder support at the rear of the trolley.

The Quikmig 250 is a unit powered by three-phase current (400V - 3pH - 50/60Hz) and has a duty cycle of 230A@60% - 250A@35% - 175A@100%.

Included equipment
• Power cable (3 m) without plug
• Earth cable (3 m)
• Gas hose (2 m)
• Drive rolls for solid wire 0.8 and 1.0
• User manual on USB key

Optional:
- MIG-MAG torch not included.
Available on the website and suitable for this unit model and power: Weldline LGS2 -250
- Adapter for 200 mm spool reference R-1019-125-1/08R available for purchase on our website
- Electrode holder for stick (coated rod) welding
