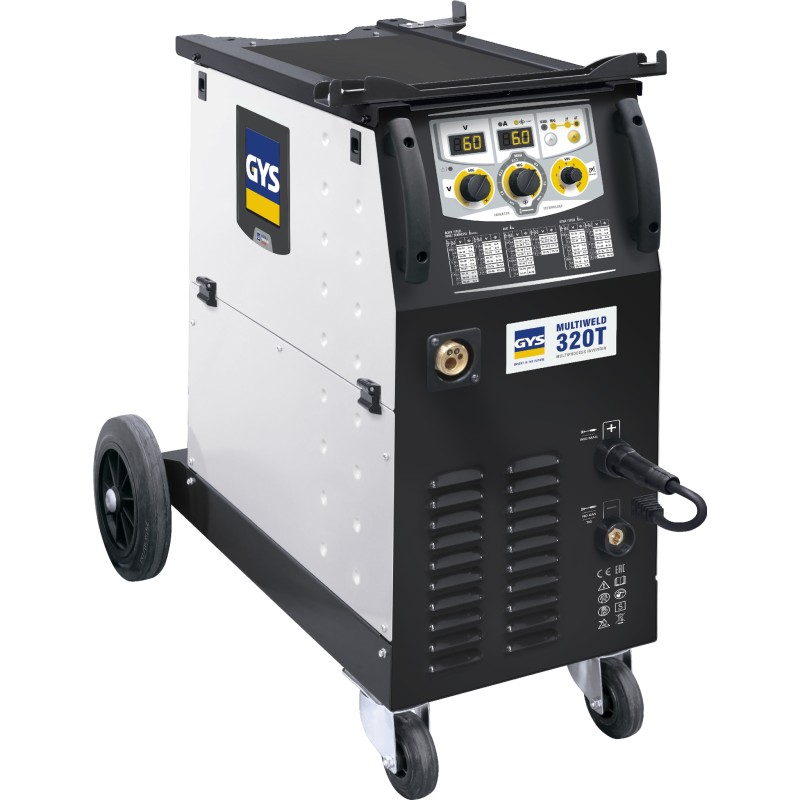

GYS - MULTIWELD 320T welder with accessories

Compact three-phase generator for workshop and job sites
Welds steel, stainless steel and aluminium
MIG duty cycle: 170A at 60% / 130A at 100%
MMA duty cycle: 150A at 60% / 120A at 100%
Current range: 40 to 320A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless wire Ø 0.6 to 1.2mm and aluminium 0.8 to 1mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 6 mm) with Antisticking function
4-roller wire feeder for spool Ø 200 mm (5 kg) or Ø 300 mm (15kg)
Removable MAG torch 250A 3m with 2T/4T function
Digital interface and very intuitive adjustment
Compatible with 10kva generator
Three-phase power supply 400 V - 16 A
Dimensions: 65 x 52 x 34 cm - 38kg
IP23 rating for outdoor use

Delivered with:
1 x 360 A torch 4m MB36
1 x 400 Amp earth clamp 4m
1x User manual
2x 1.0/1.2 mm wire feed rollers

Adaptive tool for the mobile welder
Excellent welding quality and precise arc ignition
High duty cycle: 190A@ 35% - 140A@60% - 100A @ 100%
Uses Ø 100 mm (1 kg) or Ø 200 mm (5 kg) spools
Generator compatible
3-metre torch
Lightweight and portable
LCD control panel
IP23 rating for outdoor use
Dimensions: 450x227x368mm - Weight 14.2kg
2-year warranty

Supplied with:

1 torch, length 3 m with ergonomic handle, fitted with a contact tip for steel or stainless steel wire Ø 0.8 mm
1 reversible roller for stainless steel or steel wire Ø 0.8/1 mm
1 ground clamp + cable section 16 mm², length 2.50 m
1 gas hose, length 5 m


This Lincoln Speedtec 200C Inverter Synergic technology unit allows you to weld using 3 processes: MMA, MIG-MAG and TIG

It allows welding with rutile and basic electrodes (stainless steel – cast iron, etc.) of Ø 1.6 to 4 mm (electrode holder not included)

It is also possible to add a TIG welding torch as an option. In TIG mode, this unit cannot weld aluminium.

It operates on a standard 16 A – 230 V household outlet.

Its adjustment range is 20 to 200 A in MIG-MAG mode and 20 to 160 A in MMA or TIG mode
Easy polarity reversal to use flux-cored wire (gasless) of Ø 0.9 and 1.2 mm.

It features the following devices:

PFC (power factor corrector) It can be used with a 100 m extension cord without any loss of power.
The power supply can be provided from a generator.

HOT START adjustable, reduces the risk of sticking when the electrode and workpiece are cold, also facilitates arc striking and penetration.

ARC FORCE adjustable, maintaining constant amperage regardless of arc length.

ANTI-STICKING reduces the risk of the electrode sticking to the workpiece.

Its advantages:

The high duty cycle of this unit guarantees operation without premature triggering of the thermal protection system.

This unit is delivered with the sale with:
1 x 2 m power cable
1 x 2 m gas hose
1 x 3 m ground cable
1 set of Ø 0.8 and 1 mm drive rollers for steel welding wire


This is the latest generation of welding unit produced by Lincoln, designed to replace transformer-based units which will be banned from manufacture as of 31 December 2022 due to their excessive energy consumption.

This is a welding unit allowing:
- MIG-MAG
- Flux-cored wire with and without gas
- Coated electrodes

Synergic unit (easy to use) with 24 integrated programs

Products in the QUICKMIG range are easy to use and set up.
They enable welding of light structures and small-scale assemblies such as small agricultural equipment.
The range includes generators delivering 250A and 300A, equipped with large LED screens and a user-friendly interface.
As standard, the QUICKMIG features an efficient 4-roller wire feed system regardless of material type, a connector suitable for a MIG torch, wheels and a gas cylinder support at the rear of the trolley.

The Quikmig 300 is a three-phase powered unit (400V -3pH -50/60Hz) with a duty cycle of 230A@60% - 300A@35% - 175A@100%.

Included equipment
• Power cable (3 m) without plug
• Ground cable (3 m)
• Gas hose (2 m)
• Drive rollers for 0.8 and 1.0 solid wire
• User manual on USB key

Options:
- MIG-MAG torch not included.
Available on the site and compatible with this unit model and power: Weldline LGS2 -250
- Adapter for 200 mm spool reference R-1019-125-1/08R available for purchase on our site
- Electrode holder for stick welding

The generators of the POWERTEC® i COMPACT RANGE are designed on the latest Lincoln Electric inverter platform, for optimal MIG-MAG and MMA welding performance with excellent energy efficiency. The range includes: generators delivering 250A, 320A, 380A and 450A, equipped with either a STANDARD screen (i250 & i320 models) or an ADVANCED screen (i250, i320, i380 & i450 models), to best meet customer needs depending on their welding applications. The COOLARC® 26 cooling unit is available in Plug & Play version for the POWERTEC® i380C & i450C ADVANCED.

The model shown below is the Powertec I380 ADVANCED, featuring a high duty cycle: 320A@60% - 240A@100%

Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding defects...)
Multilingual navigation menu
Comprehensive support menu: technical data, accessories, instructions, safety
7'' colour screen
USB connectivity: Software updates and diagnostics made easier thanks to built-in monitoring functions.

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves.
Intuitive adjustment by selecting the process and the thickness to weld
Display of useful information
Multilingual navigation menu
MORE FUNCTIONS
AUTO START The machine is immediately ready for use with the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rolls: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC START Instant and repeatable arc ignition on demand, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instantaneous adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require a gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering energy efficiency equal to or greater than 85% and a standby consumption below the new tolerated limits.

Earth clamp and cable, length 3 m.

Gas hose length 2 m
Reversible roll for steel/stainless steel wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

The POWERTEC® Lincoln i are new compact inverter-type power sources designed for MIG-MAG & MMA welding. They are available in two power outputs (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large color screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model shown below is the Powertec 250A Advanced

Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding defects...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' color screen
USB connectivity: Simplified software updates and diagnostics thanks to built-in monitoring functions.

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and thickness to weld V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready to use thanks to the best settings already included
USB CONNECTIVITY Simplified software updates and diagnostics thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimized wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and consistent wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instantaneous and repeatable arc starting at will, immediate stabilization of the welding arc.
STABILITY Exceptional arc stabilization ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require a gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Supplied with
Ground clamp and cable length 3 m.
Gas hose length 2 m
Reversible roller for steel/stainless steel wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

This BesterMIG 215-S Multi multiprocess unit allows MMA - MIG-MAG - TIG welding
Its digital display makes it easy to read the adjustment information
It accepts wire spools of diameter 100 and 200 mm.
Its low weight makes it an easy ally when transporting to a worksite. It can also be powered electrically by a generator.

No longer worry about choosing the welding current, wire speed or material thickness. The Synergic system does it for you while guaranteeing perfect welds.
The Synergic system limits the risk of welding defects and ensures excellent quality at reduced costs.
Weld with complete peace of mind: automatic parameter adjustment saves welding time and increases your productivity
Easy polarity change for welding with flux-cored wire (gasless).

It features the following functions:
Arc-Force
Hot-Start
Anti-Stick

It is delivered with:
1 MIG-MAG torch 4 m length fitted with a contact tip for steel or stainless wire Ø 0.8 mm.
1 Earth clamp + Cable section 16 mm² length 3 m
1 Electrode holder + cable length 3 m
1 Power supply cable length 3 m
1 Reversible roller for steel or stainless wire Ø 0.8 / 1 mm mounted on the unit
1 welding gas hose for refillable cylinder length 2 m

Ideal for craftsmen or home users
Welds steel, stainless steel and aluminum occasionally
Duty cycle: 120A@20% - 40°C
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (solid wire Ø 0.6 to 0.8 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 mm)
- MMA (electrode Ø 1.6 to 2.5 mm) with Antisticking function
2-roller wire feed for spool Ø 100 mm (1 kg)
Fixed MAG torch 120A, 2.20m
Very intuitive interface and settings
Very lightweight, easily portable
Single-phase power supply 230 V - 16 A
Dimensions: 34 x 16 x 31 cm - 7.2 kg

Delivered with:
- 1 ground clamp (cable 1.6 m / 16 mm2)
- 1 electrode holder (cable 1.6 m / 16 mm2)
- 1 accessories bag (Contact tip 0.9mm, Gas nozzle, Tightening wrench, Gas hose 1m, clamps)

This Inverter technology machine Lincoln Speedtec 180C allows you to weld using 2 processes: MMA-MIG-MAG

It allows welding with rutile and basic electrodes (stainless steel - cast iron, etc.) of Ø 1.6 to 4 mm (electrode holder not included)

It operates on a 16 A or 25 A - 230 V domestic outlet depending on the amperage setting.

Its adjustment range is 20 to 200 A for MIG-MAG welding and 20 to 160 A for MMA welding.
Easy polarity reversal to allow the use of flux-cored wire (gasless) of Ø 0.9 and 1.2 mm.

It features the following devices:

PFC (power factor corrector) It can be used with a 100 m extension cord without any power loss.
The power supply can be provided from a generator.

HOT START adjustable, which reduces the risk of sticking when the electrode and workpiece are cold, also facilitates arc ignition and penetration.

ARC FORCE adjustable, which maintains constant amperage regardless of arc length.

ANTI-STICKING reduces the risk of the electrode sticking to the workpiece.

Its advantages:

The high duty cycle of this machine guarantees use without premature triggering of the thermal protection system.

This machine is delivered with:
1 power cable 2 m
1 gas hose 2 m
1 ground cable 3 m
1 set of rollers Ø 0.8 and 1 mm for steel welding wire


Ideal for locksmiths and maintenance workshops
Welds steel, stainless steel and aluminum
MIG duty cycle: 400A at 60% / 240A at 100%
MMA duty cycle: 400A at 60% / 240A at 100%
Amperage range: 40 to 400A
Combines 3 welding processes in 1 unit:
- MIG/MAG with gas (steel/stainless wire Ø 0.6/0.8 to 1.6 mm and Alu 0.8 to 1.6 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 6 mm) +
4 drive rolls for Ø 200 mm spool (5 kg) or Ø 300 mm (15 kg)
Removable MAG torch 250A (2T/4T) 3 m (8 mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 10 kVA generator
Gas cylinder support for cylinders up to 4 m³
Three-phase power supply 400 V - 16 A
Dimensions: 77 x 79 x 47 cm - 48 kg
IP21 rating

Supplied with:
1x MIG 36 torch - 4 meters
1x 400A ground clamp - 4 meters (35/50 mm connector)
1x User manual
2x drive rolls 1.0/1.2 mm

TECHNOMIG 223 TREO SYNERGIC 230V TELWIN WELDING MACHINE


Inverter multiprocess welding machine MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift controlled by microprocessor.
Particularly designed for bodywork applications, it allows immediate use of three different torches, two traditional MIG torches and one spool gun.

This feature enables direct intervention on different materials without needing to replace the torch and wire spool.
The traditional MIG torches are designed for welding steel, high-strength HLE steels, as well as stainless steel and braze-welding of galvanised sheets; the spool gun torch is specifically designed for aluminium even at a significant distance from the generator.

The SYNERGIC quick adjustment of welding parameters, thanks to ONE TOUCH LCD SYNERGY technology, makes the product very easy to use.
ATC technology, Made in Telwin, makes it easy to achieve excellent welds on thin thicknesses thanks to advanced arc control. It is also possible to intervene manually on arc length: this adjustment allows the shape of the weld bead to be modified according to the welder's style.

The ONE TOUCH LCD graphic display enables better reading of all welding parameters.

Characteristics:
- 17 pre-set synergic curves
- LCD screen display of welding parameters
- 2/4 stroke, spot operation selection
- Thermostatic, overvoltage, undervoltage, overcurrent, motor-generator protections (+/- 15%).

Supplied with:

1x Cable with earth clamp (3 metres) 16 mm² - 10/25 connectors
1x MIG torch MB15 STEEL (3 metres) Euro connector
1x MIG torch MB15 ALU (3 metres) - Euro connector
1x SPOOL GUN torch M6
1x Gas hose
1 Set of 2 drive rolls for steel or stainless wire Ø 0.6 / 0.8 mm (mounted on the machine).
User manual

2-YEAR WARRANTY

Multi-process Synergic Inverter welding machine with an adjustment range of 10 to 240 A enabling the following welding processes:

1) Semi-automatic (welding wire) MIG-MAG, supports the use of steel, stainless steel, aluminium, brazing wire (special for automotive sheet metal) with the appropriate gas, and flux-cored wire for welding steel without gas.
The PULSE process guarantees high execution speed, excellent penetration and cleanliness, as well as welding in all positions.
This process is particularly recommended for welding thin aluminium and stainless steel.
Wire driven by a motor with 4 drive rolls.

The ROOT-MIG process makes it easier to weld sheet metal edge-to-edge, even with wide gaps (also in TIG welding mode).

2) Basic and rutile electrode rods from Ø 1.6 to 6 mm. (electrode holder optional)

3) Lift TIG start for welding steel, stainless steel and ferrous alloys. (TIG torch optional).
The ATC process is highly effective when welding thin materials (0.5 - 0.8 mm), as it reduces metal distortion caused by heat build-up.

The price includes in addition to the machine:

1 MIG/MAG torch 250A with a length of 3 m fitted with a 0.8 mm contact tip.
1 reversible drive roll for steel wire 0.6 / 0.8 mm (mounted on the machine).
1 earth clamp and cable

Ideal for craftsmen or home users
Welds steel, stainless steel and aluminum occasionally
Duty cycle: 140A@15% - 40°C
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (solid wire Ø 0.6 to 0.8 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 mm)
- MMA (electrode Ø 1.6 to 2.5 mm) with Antisticking function
2-roller wire feed for spool Ø 100 mm (1 kg) or Ø 200 mm (5 kg)
Removable MAG torch 150A, 2.20m
Very intuitive interface and settings
Compatible with 8 kVA generator
Single-phase power supply 230 V - 16 A
Dimensions: 40 x 20 x 33 cm - 15 kg

Delivered with:
- 1 ground clamp (cable 1.6 m / 16 mm2)
- 1 electrode holder (cable 1.6 m / 16 mm2)
- 1 accessories bag (Contact tip 0.9mm, Gas nozzle, Tightening wrench, Gas hose 1m with 2 clamps)

The Lincoln POWERTEC® i units are new compact inverter-type generators for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

Two models are presented:

Powertec i250A standard (STD) Manual adjustment of welding parameters
Manual adjustment of voltage and wire feed speed
Quick button for selection of welding process and shielding gas
Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

Powertec i250 synergic (ADV)
Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding faults...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' colour screen
USB connectivity: Software updates and diagnostics made easier with built-in monitoring functions.

These units feature:
INNOVATIVE INTUITIVE INTERFACE
Easy navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and the thickness to weld V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready for use with the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier with built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC START Instant and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during changes in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new tolerated limits.

Supplied with

Ground clamp and cable length 3 m.
Gas hose length 2 m
Reversible roller for steel/stainless wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

Welds steel, stainless steel and aluminum from 0.6 to 6mm in all positions
MIG duty cycle: 130A at 60% / 110A at 100%
MMA duty cycle: 110A at 60% / 90A at 100%
TIG duty cycle: 135A at 60% / 115A at 100%
Current range: 20 to 200A - Voltage: 76V
Combines 4 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless steel wire Ø 0.6/0.8 to 1.6 mm and aluminum 0.8 to 1.6mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- DC TIG Lift - Lift arc ignition
- MMA (basic and rutile electrode up to 5 mm)
4 drive rolls for spool Ø 200 mm (5 kg) or Ø 300 mm (15kg)
Removable STEEL MIG torch 250A 3m (8mm contact tip)
Digital interface and highly intuitive settings
Compatible with 9 kVA generator and 100m extension cord
Single-phase power supply 230 V - 16 A
Dimensions: 27.5 x 55 x 44 cm - 20kg
IP21 rating

Supplied with:
1x 250 A 3m torch MB25
1x 200A 2.5m ground cable
1x MMA electrode holder 2m
1x User manual
2x 0.8/1mm drive rolls

TIG torch optional

This Inverter Synergic technology welding unit Lincoln Speedtec 320 CP allows you to weld using 2 processes: MMA-MIG-MAG.
This unit is perfectly suited for maintenance and repair work, metal construction (on-site or in the workshop) and the construction of aluminium structures.

It allows welding with rutile and basic electrodes (stainless steel - cast iron, etc.) from Ø 1.6 to 4 mm (electrode holder not included)

It operates on a 20 A - 400 V/3Ph domestic outlet
4-roller wire feed system

Its adjustment range is 20 to 200 A in MIG-MAG mode and 20 to 160 A in MMA mode
Easy polarity reversal to use flux-cored wire (gasless) of Ø 0.9 and 1.2 mm.

It is equipped with the following devices:

PFC (Power Factor Corrector) It can be used with a 100 m extension cord without any loss of power.
The power supply can be provided by a generator.

HOT START adjustable, which reduces the risk of sticking when the electrode and workpiece are cold, and also facilitates arc striking and penetration.

ARC FORCE adjustable, which maintains constant amperage regardless of arc length.

ANTI-STICKING reduces the risk of electrode sticking to the workpiece.

Key features:

The high duty cycle of this unit guarantees use without premature triggering of the thermal protection system.

This unit is delivered at the time of sale with:
1 x 5 m power cable
1 x 2 m gas hose
1 x 5 m ground cable
1 set of Ø 0.8 and 1 mm rollers for steel welding wire
1 x 300 mm wire adapter
